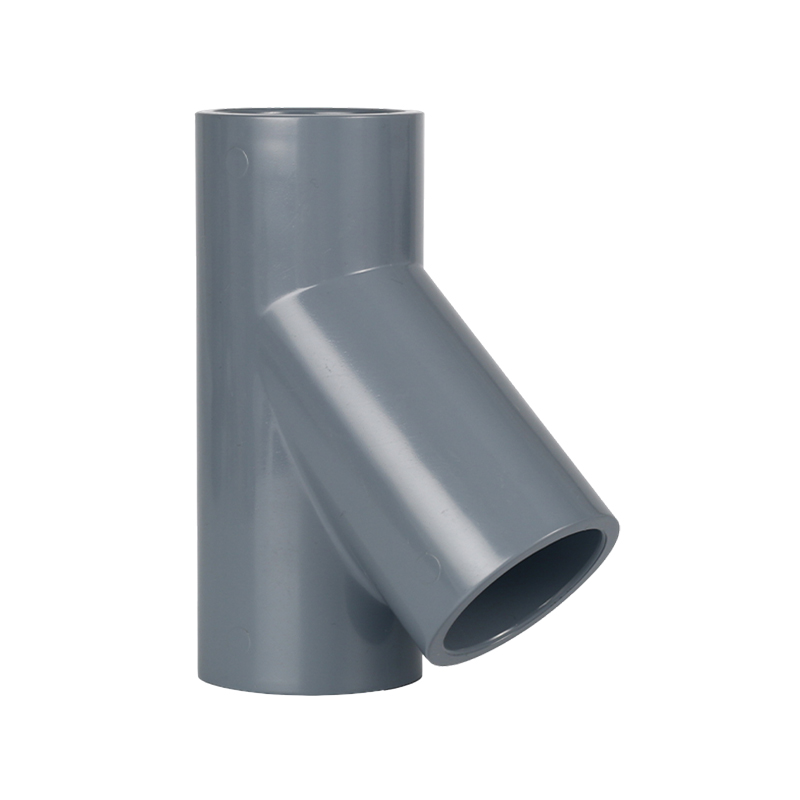

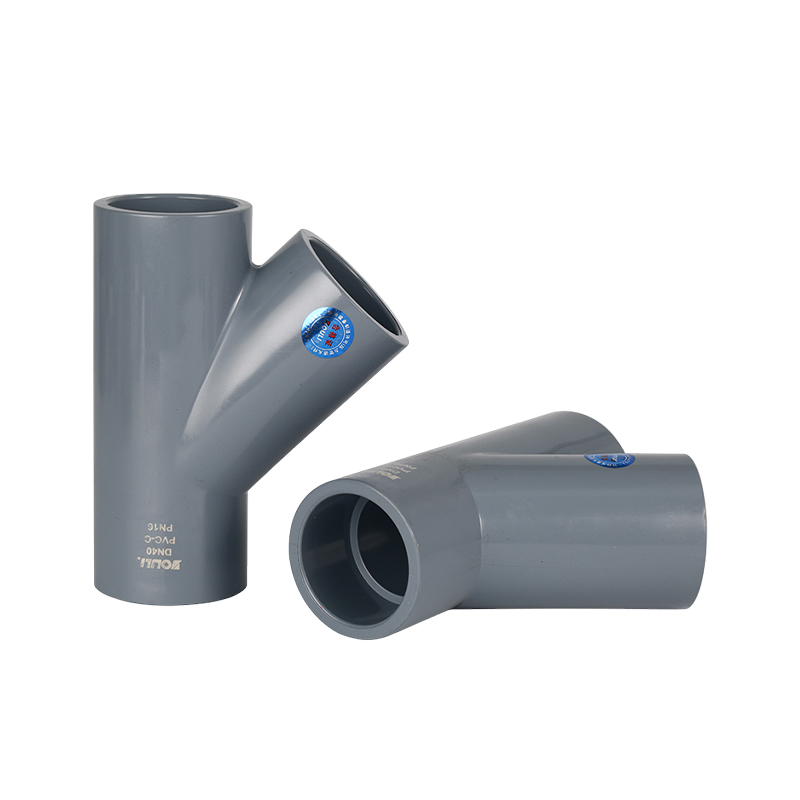

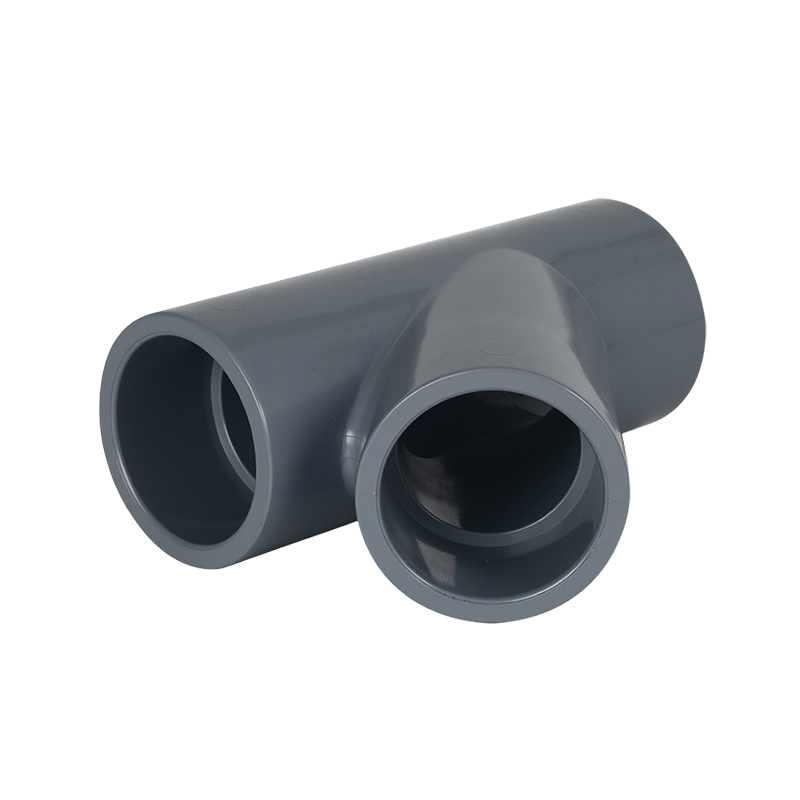

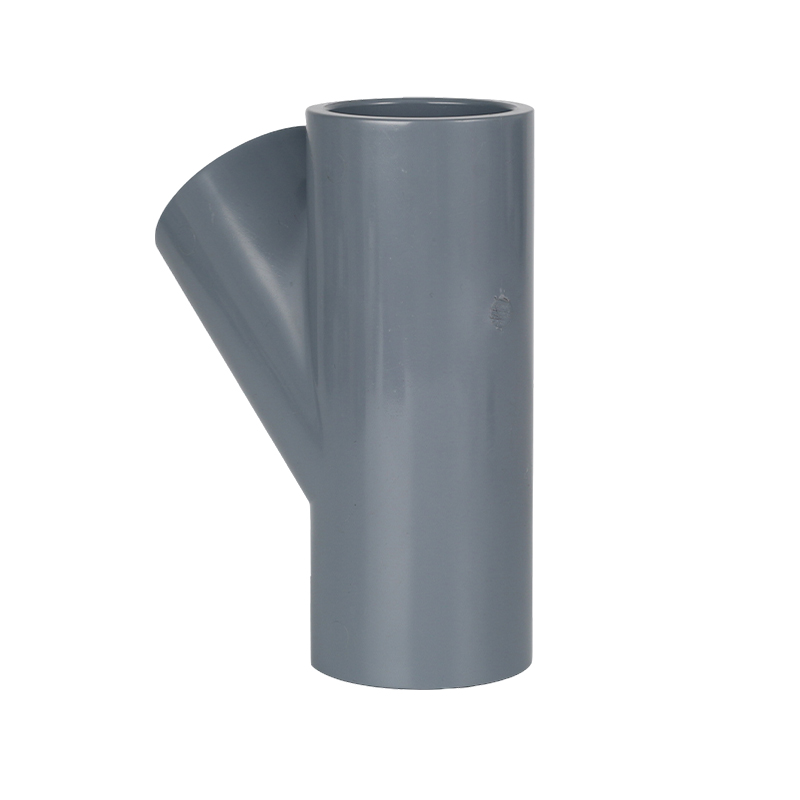

PVC-C 45° Tee

YL 36 36 050

Consult

Features Technical Indicators Overall Dimension

1. Excellent heat resistance and flame retardancy, capable of long-term use at temperatures up to 95°C, and non-flammable.
2. Corrosion and aging resistance, with strong tolerance to acids, alkalis, salts, and other chemicals.
3. Excellent mechanical properties, capable of withstanding greater external forces and pressures, and not susceptible to deformation or damage.

PVC-C 45° Tee
Size		Dimensions（mm）					Code
DN	dn	D	d	H	L	Z	PVC-C	PVC-U
40	50	62	50	72.5	155	31	YL 36 36 050	YL 05 36 050
50	63	75	63	86	180	38	YL 36 36 063	YL 05 36 063
65	75	88	75	103	212	44	YL 36 36 075	YL 05 36 075
80	90	104	90	120	245	51	YL 36 36 090	YL 05 36 090
100	110	127	110	147	295	61	YL 36 36 110	YL 05 36 110
125	140	161	140	186	376	76	YL 36 36 140	YL 05 36 140
150	160	184	160	217	427	86	YL 36 36 160	YL 05 36 160
