Customized High-quality OEM/ODM Paris Stone Flange in Professional Factory & Suppliers-Youli Holding Group Co., Ltd.

1. Excellent heat resistance and flame retardancy, capable of long-term use at temperatures up to 95°C, and non-flammable.
2. Corrosion and aging resistance, with strong tolerance to acids, alkalis, salts, and other chemicals.
3. Excellent mechanical properties, capable of withstanding greater external forces and pressures, and not susceptible to deformation or damage.

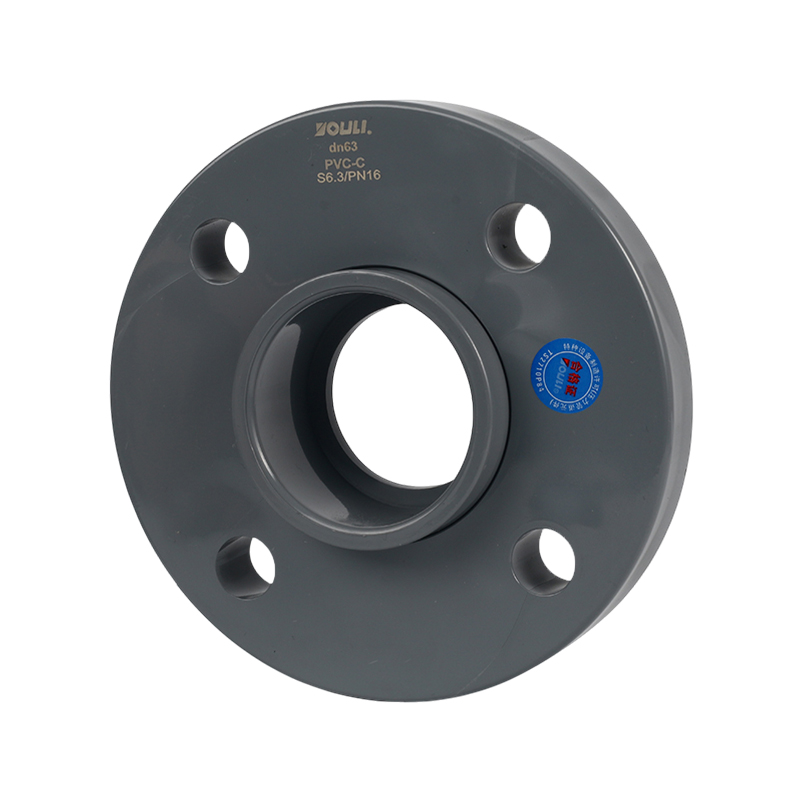

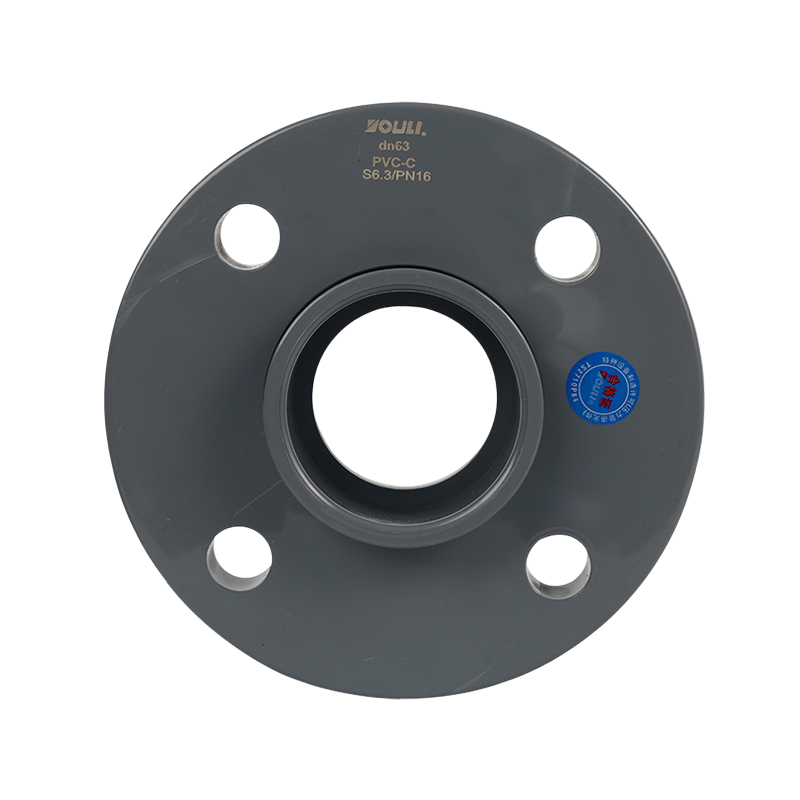

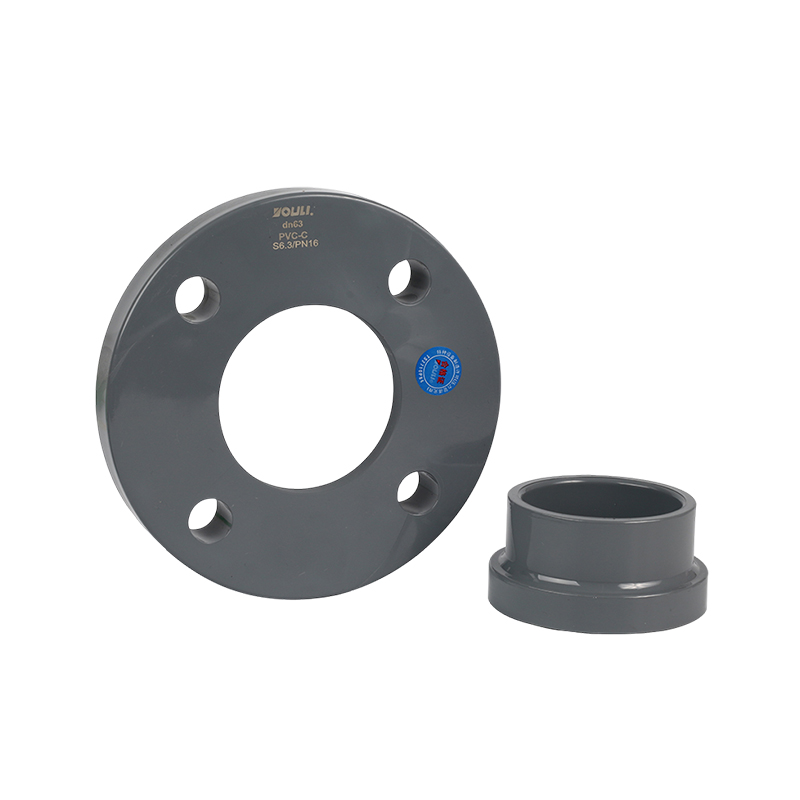

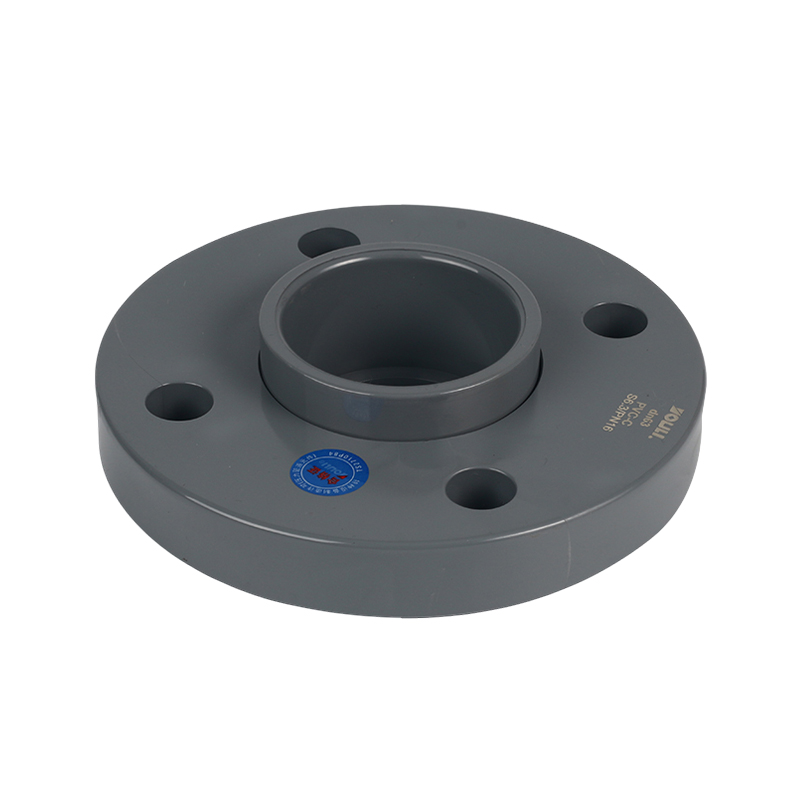

PVC-C Van Stone Flange
Size		Dimensions（mm）								Code
DN	dn	D	d	Z	D1	D2	T	n-Φe	H	PVC-C	PVC-U
25	32	115	32	22	85	41.5	18	4-14	28	YL 36 24 032	YL 05 24 032
32	40	140	40	26	100	50.5	20	4-18	33	YL 36 24 040	YL 05 24 040
40	50	150	50	31	110	61	20	4-18	38	YL 36 24 050	YL 05 24 050
50	63	165	63	38	125	75.5	24	4-18	43.5	YL 36 24 063	YL 05 24 063
65	75	186	75	43	145	90.5	24	4-18	52.5	YL 36 24 075	YL 05 24 075
80	90	200	90	51	160	106	26	8-18	61.5	YL 36 24 090	YL 05 24 090
100	110	220	110	62	180	127.5	28	8-18	69	YL 36 24 110	YL 05 24 110
125	140	250	140	76	210	160	30	8-18	86	YL 36 24 140	YL 05 24 140
150	160	285	160	86	240	182	32	8-22	95	YL 36 24 160	YL 05 24 160
200	225	340	225	119	295	246	35	8-22	130	YL 36 24 225	YL 05 24 225
250	280	395	280	146	350	310	43	12-22	156	YL 36 24 280	YL 36 24 280
300	315	476	315	164	400	340	43	12-22	180	YL 36 24 315	YL 05 24 315
350	355	532	355	185	460	390	43	16-22	200	YL 36 24 355	YL 05 24 355
400	400	568	400	206.5	515	432	45	16-26	232	YL 36 24 400	YL 05 24 400
450	450	615	450	231	565	490	45	20-26	251	YL 36 24 450	YL 05 24 450
500	500	670	500	256	620	539	50	20-26	280	YL 36 24 500	YL 05 24 500
600	600	780	600	290	725	640	47	20-30	320	YL 36 24 600	YL 05 24 600
