PVC-C Brass Male Adapto

YL 36 17 620

Consult

Features Technical Indicators Overall Dimension

1. Excellent heat resistance and flame retardancy, capable of long-term use at temperatures up to 95°C, and non-flammable.
2. Corrosion and aging resistance, with strong tolerance to acids, alkalis, salts, and other chemicals.
3. Excellent mechanical properties, capable of withstanding greater external forces and pressures, and not susceptible to deformation or damage.

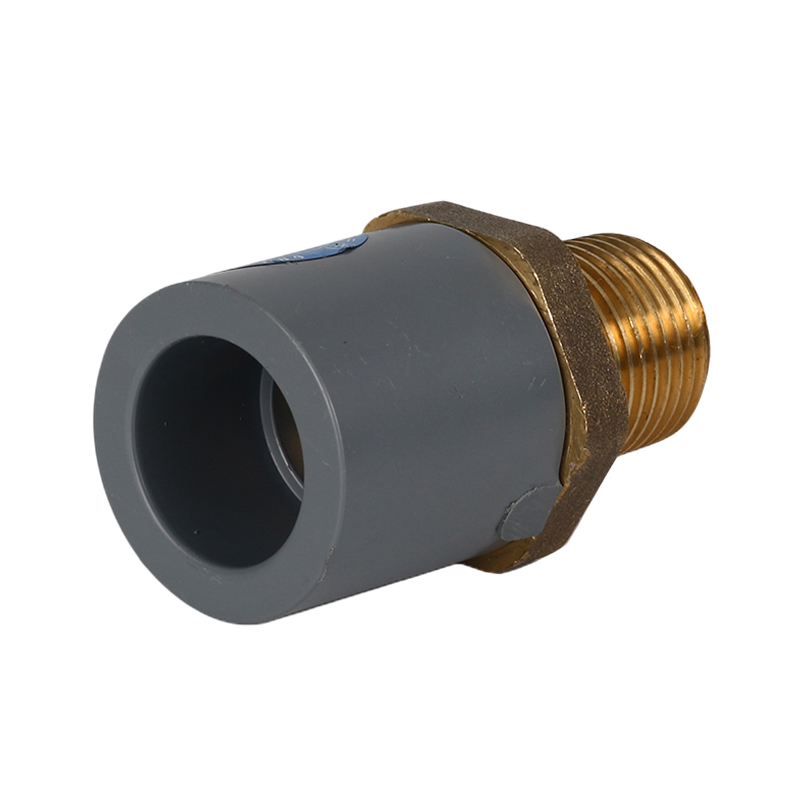

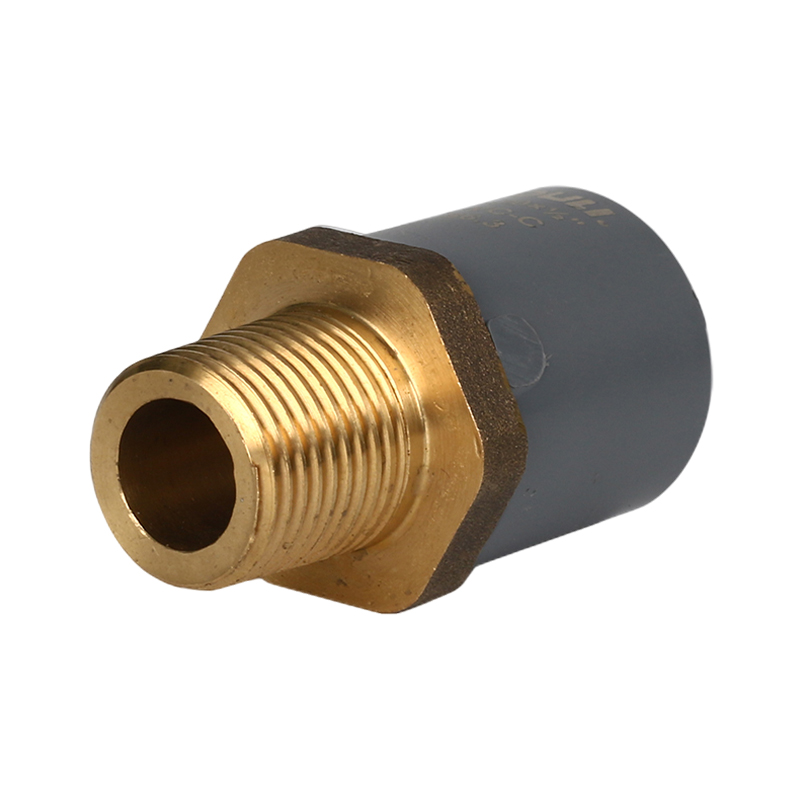

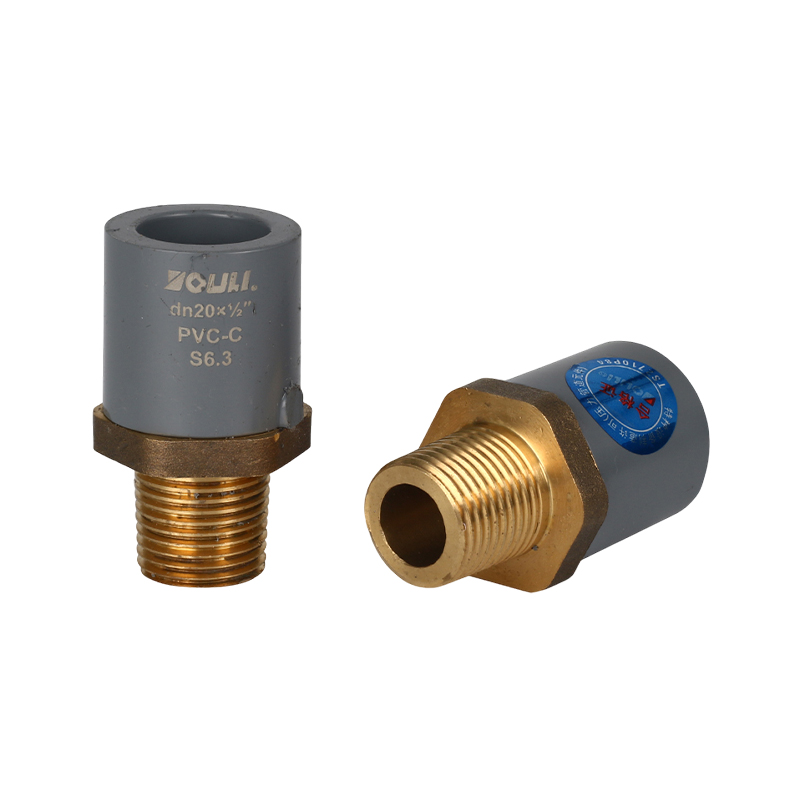

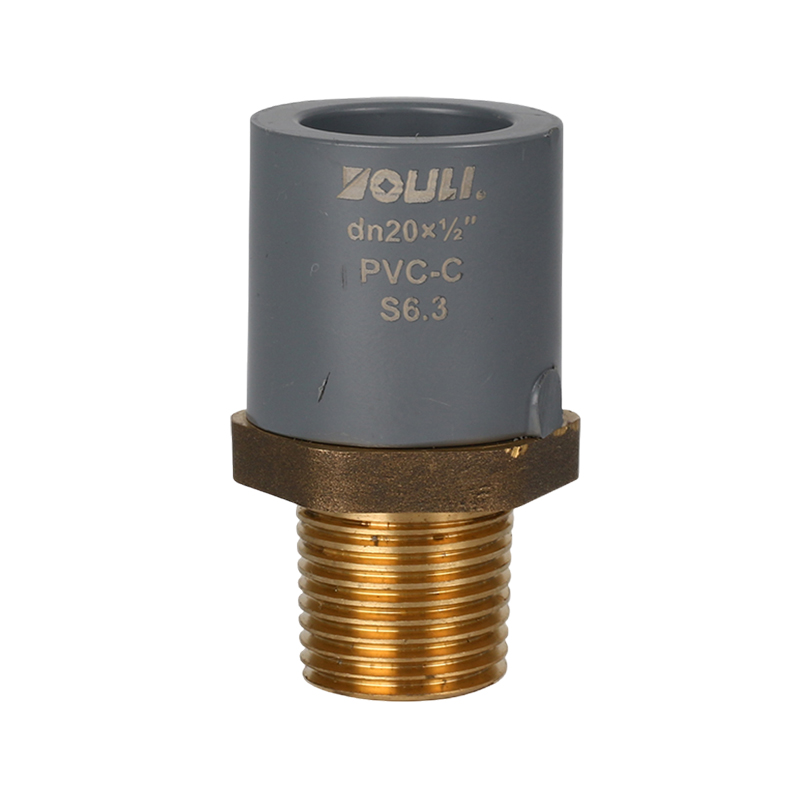

PVC-C Brass Male Adaptor
Size		Dimensions（mm）							Code
DN	dn	D	d	Z	D1	B	L	S	PVC-C	PVC-U
15	20	30	20	16	R 2 ½＂	31	55	20	YL 36 17 620	YL 05 17 620
20	25	35.5	25	20	R 2 ¾＂	36.5	56	17	YL 36 17 625	YL 05 17 625
