Customized High-quality OEM/ODM Paris Blind Flange in Professional Factory & Suppliers-Youli Holding Group Co., Ltd.

1. Excellent heat resistance and flame retardancy, capable of long-term use at temperatures up to 95°C, and non-flammable.
2. Corrosion and aging resistance, with strong tolerance to acids, alkalis, salts, and other chemicals.
3. Excellent mechanical properties, capable of withstanding greater external forces and pressures, and not susceptible to deformation or damage.

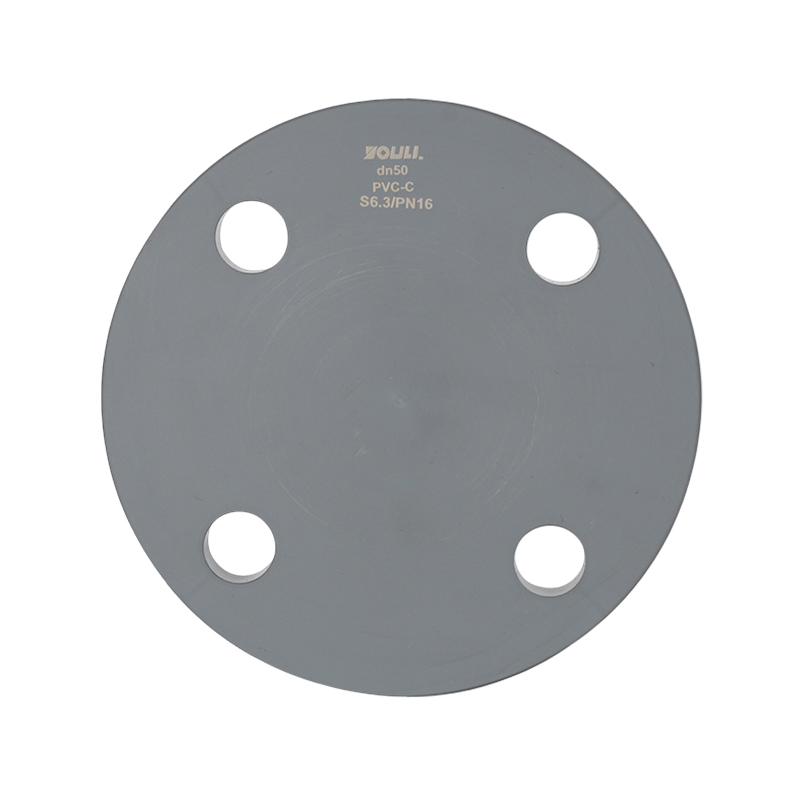

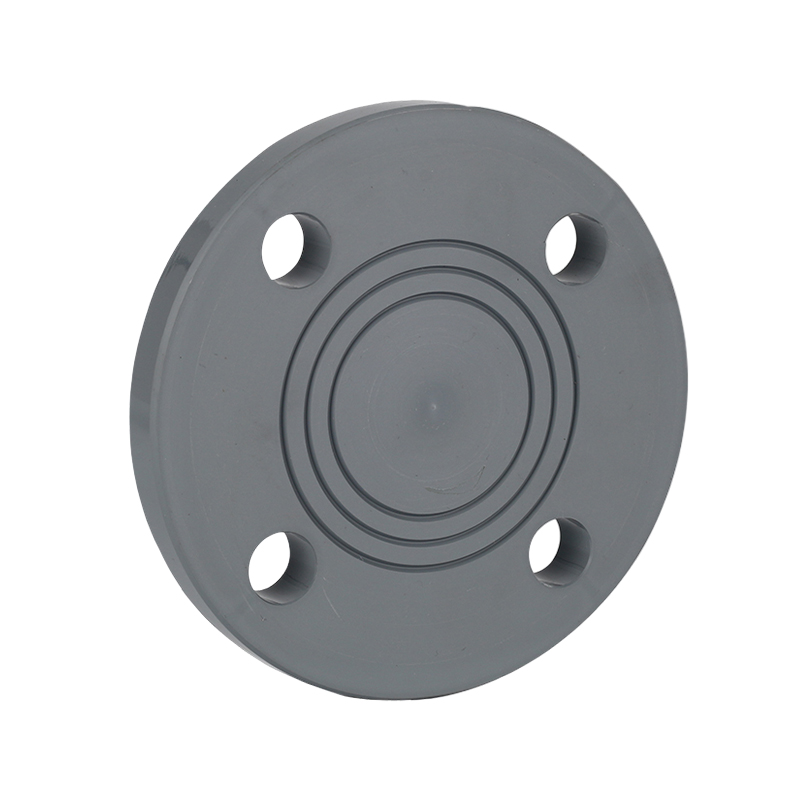

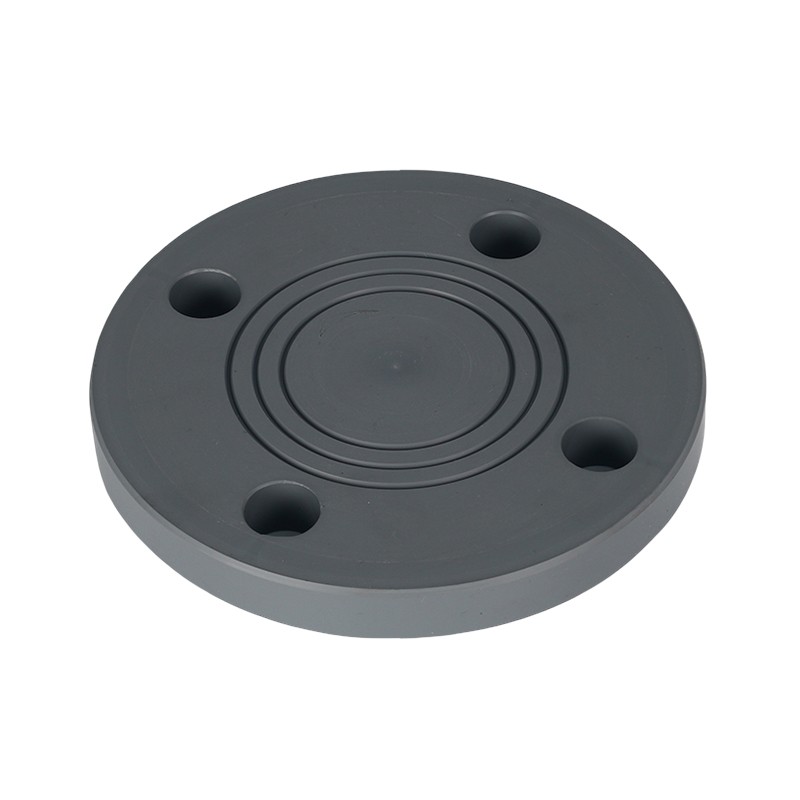

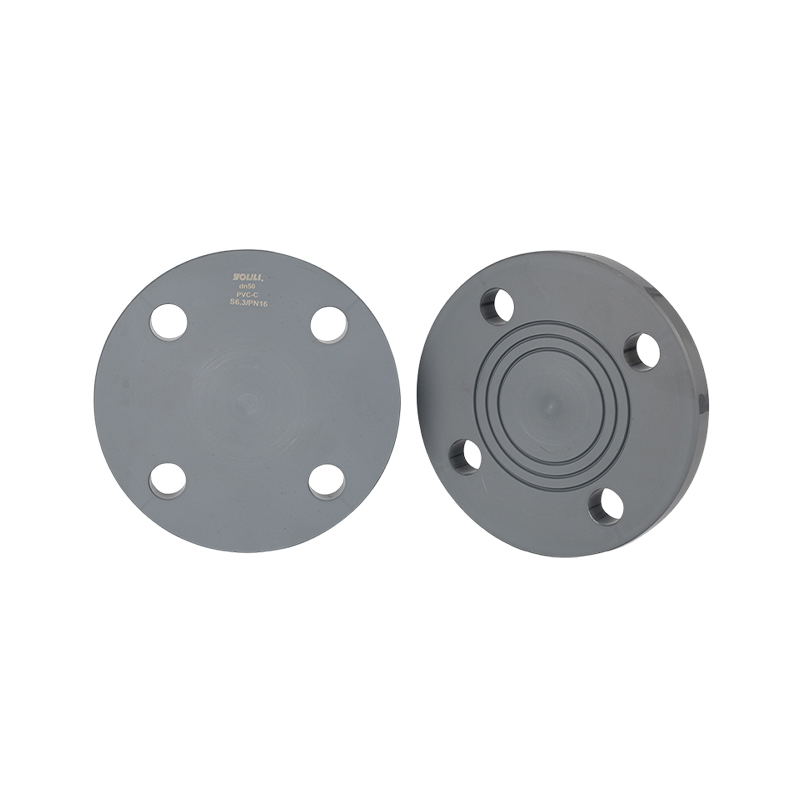

PVC -C Blind Flange

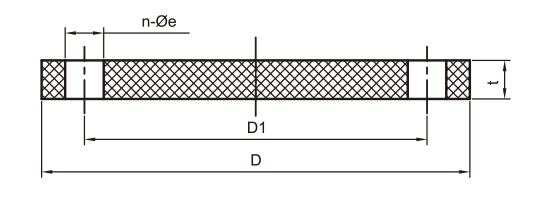

Size		Dimensions（mm）				Code
DN	dn	D1	D	T	n-Φe	PVC-C	PVC-U
15	20	65	95	12±1	4-14	YL 36 37 020	YL 05 37 020
20	25	75	105	14±1	4-14	YL 36 37 025	YL 05 37 025
25	32	85	115	14±1	4-14	YL 36 37 032	YL 05 37 032
32	40	100	140	14±1	4-18	YL 36 37 040	YL 05 37 040
40	50	110	150	18±1	4-18	YL 36 37 050	YL 05 37 050
50	63	125	165	18±1	4-18	YL 36 37 063	YL 05 37 063
65	75	145	185	18±1	4-18	YL 36 37 075	YL 05 37 075
80	90	160	200	18±1	8-18	YL 36 37 090	YL 05 37 090
100	110	180	218	20±1	8-18	YL 36 37 110	YL 05 37 110
125	140	210	250	26±1	8-18	YL 36 37 140	YL 05 37 140
150	160	240	285	26±1	8-22	YL 36 37 160	YL 05 37 160
200	225	295	342	28±1	8-22	YL 36 37 225	YL 05 37 225
250	280	350	405	32±1	12-22	YL 36 37 280	YL 05 37 280
300	315	400	445	34±1	12-22	YL 36 37 315	YL 05 37 315
*350	355	460	505	34±1	16-22	Z 36 37 003	Z 05 37 003
*400	400	515	565	34±1	16-26	Z 36 37 004	Z 05 37 004
*450	450	565	615	40±1	20-26	Z 36 37 005	Z 05 37 005
*500	500	620	670	40±1	20-26	Z 36 37 006	Z 05 37 006
*630	630	725	780	40±1	20-30	Z 36 37 008	Z 05 37 008
*710	710	840	895	40±1	24-30	Z 36 37 009	Z 05 37 009
*800	800	950	1015	40±1	24-33	Z 36 37 010	Z 05 37 010
*900	900	1050	1115	40±1	28-33	Z 36 37 011	Z 05 37 011
*1000	1000	1160	1230	40±1	28-36	Z 36 37 012	Z 05 37 012
*1100	1100	1270	1340	40±1	28-36	Z 36 37 013	Z 05 37 013
*1200	1200	1380	1455	40±1	32-39	Z 36 37 014	Z 05 37 014
