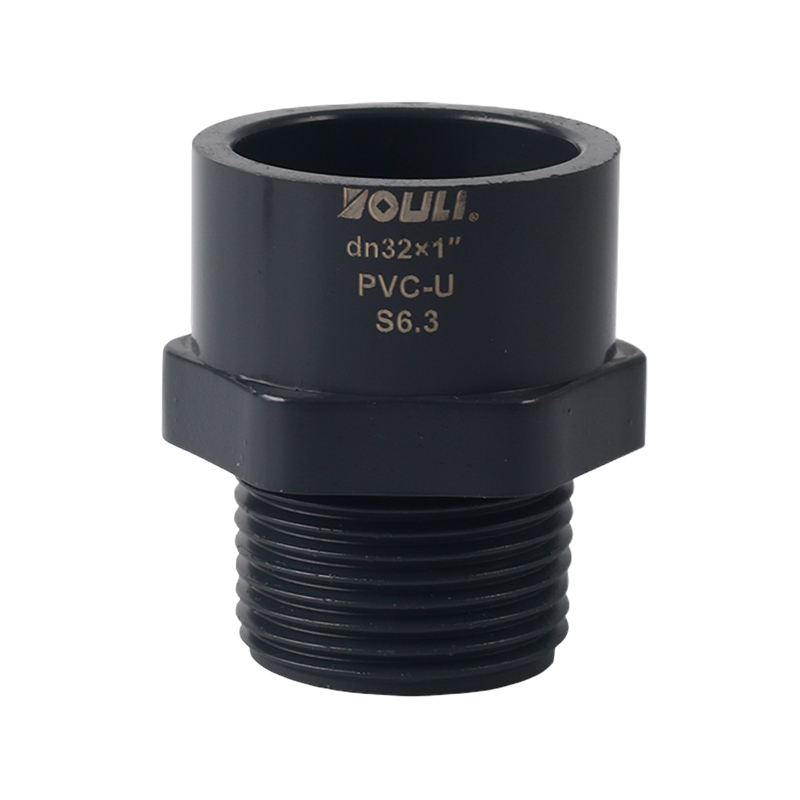

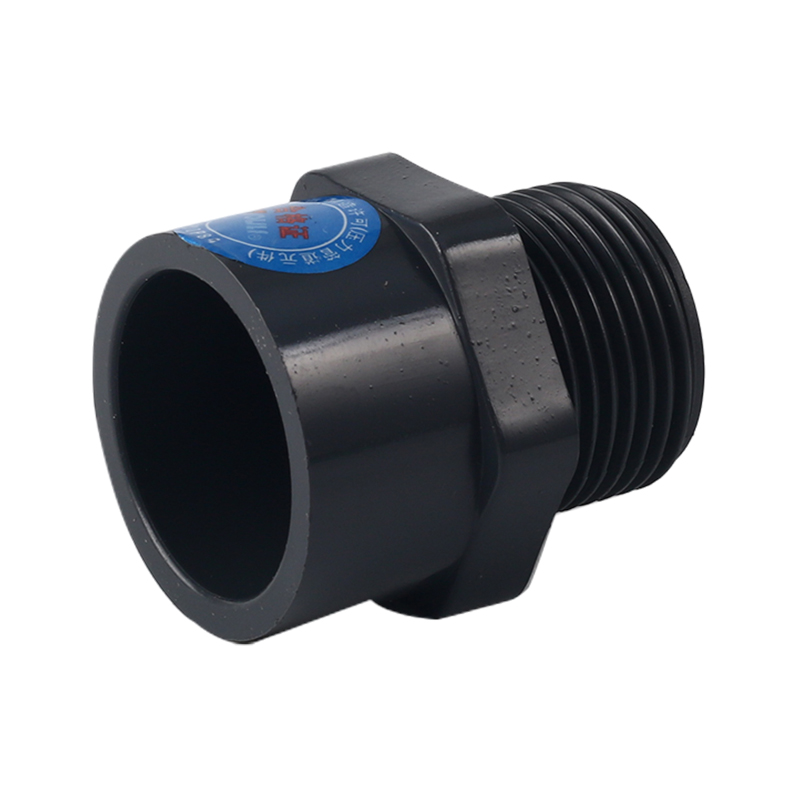

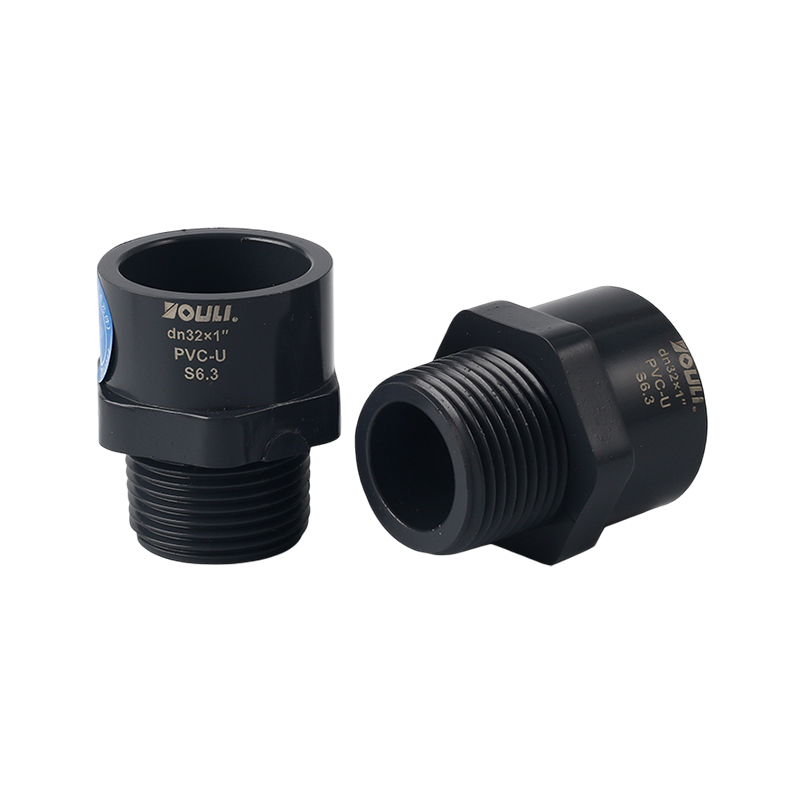

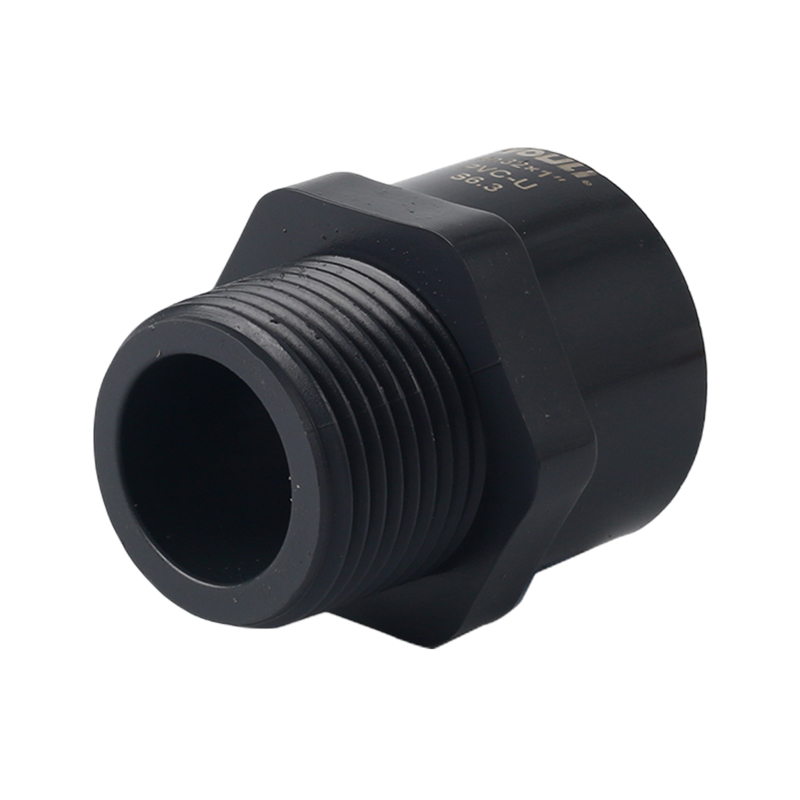

PVC-U Male Adaptor

YL 05 17 420

Consult

Features Technical Indicators Overall Dimension

1. Wear-resistant, water-resistant, and anti-aging, the normal service life can reach more than 30 years.
2. The product meets national environmental protection requirements, does not contain plasticizers, is non-toxic and harmless, and can be recycled.
3. The product is widely used in water supply and drainage pipes, agricultural irrigation pipes, environmental engineering pipes, air conditioning pipes and other fields.

PVC-U Male Adaptor
Size		Dimensions（mm）							Code
DN	dn	D	d	Z	D1	B	L	S	PVC-C	PVC-U
15	20	28.5	20	18.5	R₂ ½＂	28.5	42	15.5	YL 36 17 420	YL 05 17 420
20	25	33	25	20	R₂ ¾＂	34	45	18.5	YL 36 17 425	YL 05 17 425
25	32	40	32	22	R₂ 1＂	42	50	21	YL 36 17 432	YL 05 17 432
32	40	50	40	27	R₂1 ¼＂	50	60	24	YL 36 17 440	YL 05 17 440
40	50	61	50	31	R₂ 1 ½＂	65	66	27	YL 36 17 450	YL 05 17 450
50	63	75	63	38	R₂ 2＂	75	75	27	YL 36 17 463	YL 05 17 463
