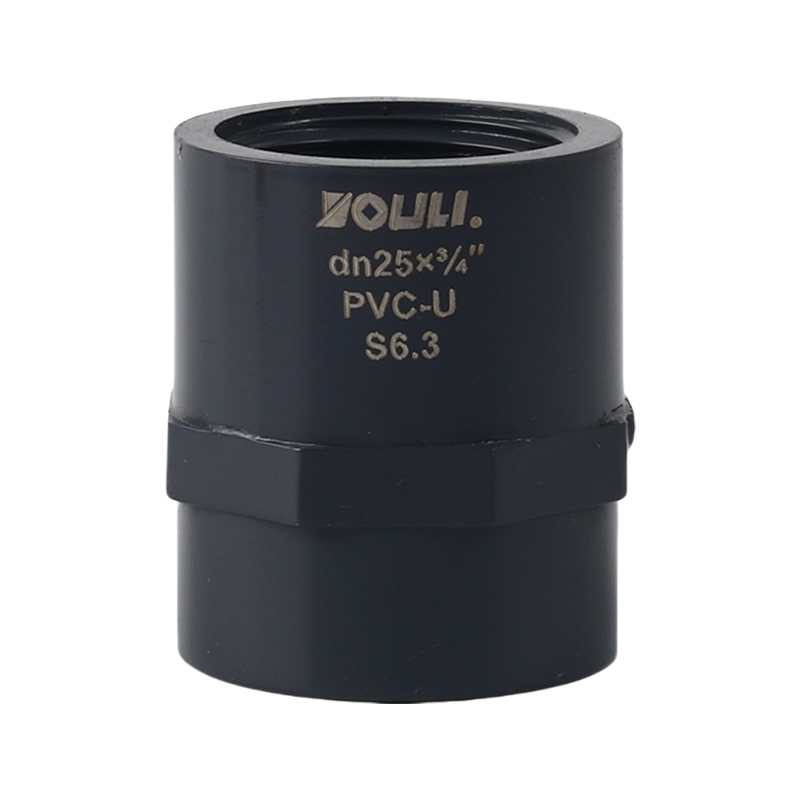

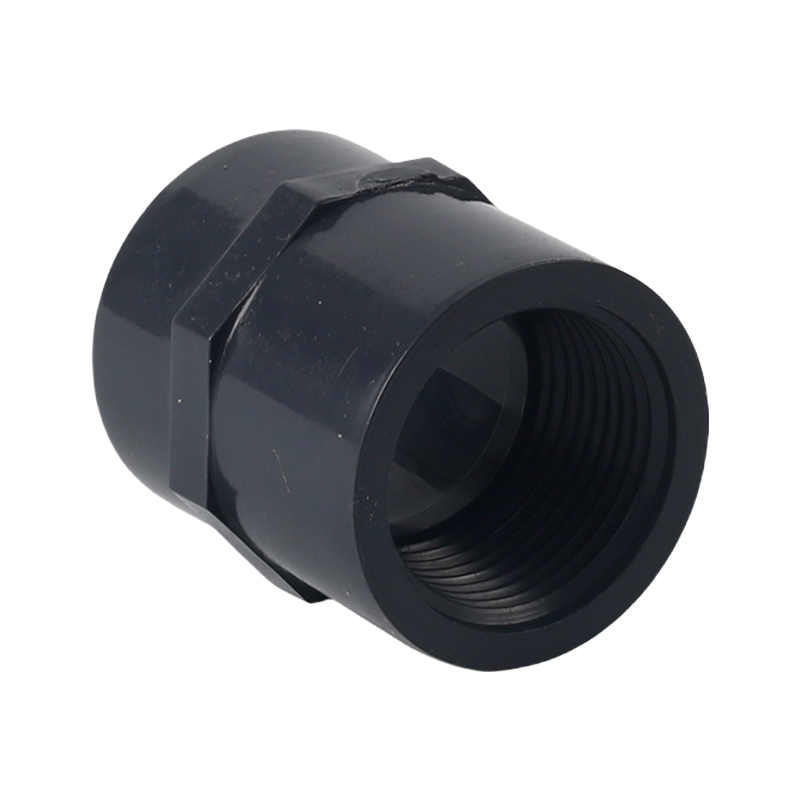

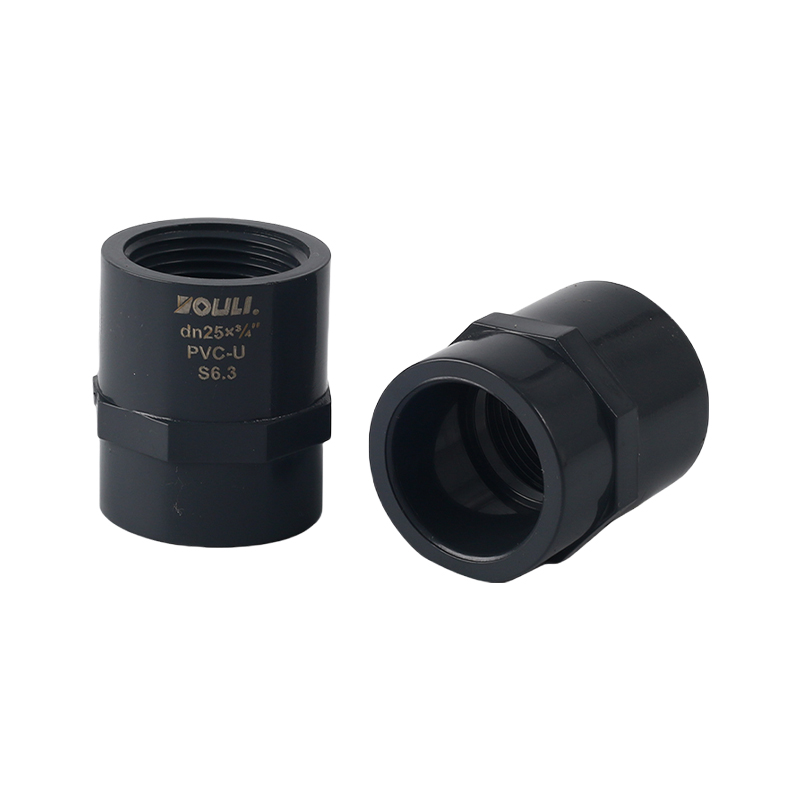

PVC-U Female Adaptor

YL 05 31 420

Consult

Features Technical Indicators Overall Dimension

1. Wear-resistant, water-resistant, and anti-aging, the normal service life can reach more than 30 years.
2. The product meets national environmental protection requirements, does not contain plasticizers, is non-toxic and harmless, and can be recycled.
3. The product is widely used in water supply and drainage pipes, agricultural irrigation pipes, environmental engineering pipes, air conditioning pipes and other fields.

PVC-U Female Adaptor
Size		Dimensions（mm）							Code
DN	dn	D	d	Z	D1	B	L	S	PVC-C	PVC-U
15	20	31	20	16	Rc ½＂	31	34	16	YL 36 31 420	YL 05 31 420
15	20	31	20	16	M20×1.5	31	34	16	YL 36 31 421	YL 05 31 421
20	25	33	25	19	Rc ¾＂	34	40	17	YL 36 31 425	YL 05 31 425
25	32	44	32	22	Rc 1＂	44	47	21	YL 36 31 432	YL 05 31 432
25	32	44	32	22	M20×1.5	44	47	21	YL 36 31 433	YL 05 31 433
32	40	50	40	27	Rc 1¼＂	50	54	24	YL 36 31 440	YL 05 31 440
40	50	64.5	50	31	Rc 1½＂	65	62	27	YL 36 31 450	YL 05 31 450
50	63	77.5	63	38	Rc 2＂	78	69	27	YL 36 31 463	YL 05 31 463
