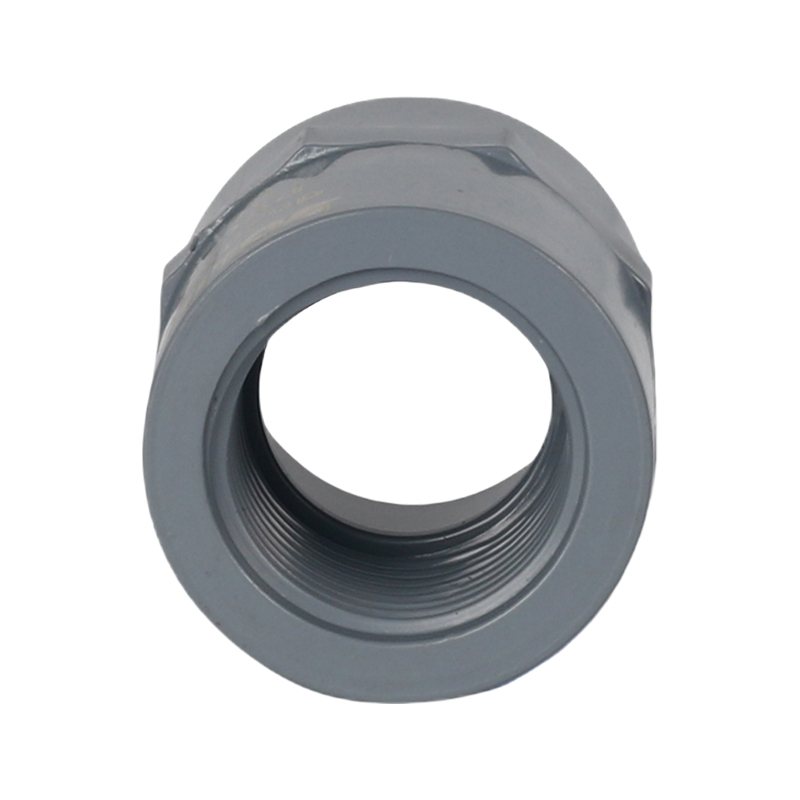

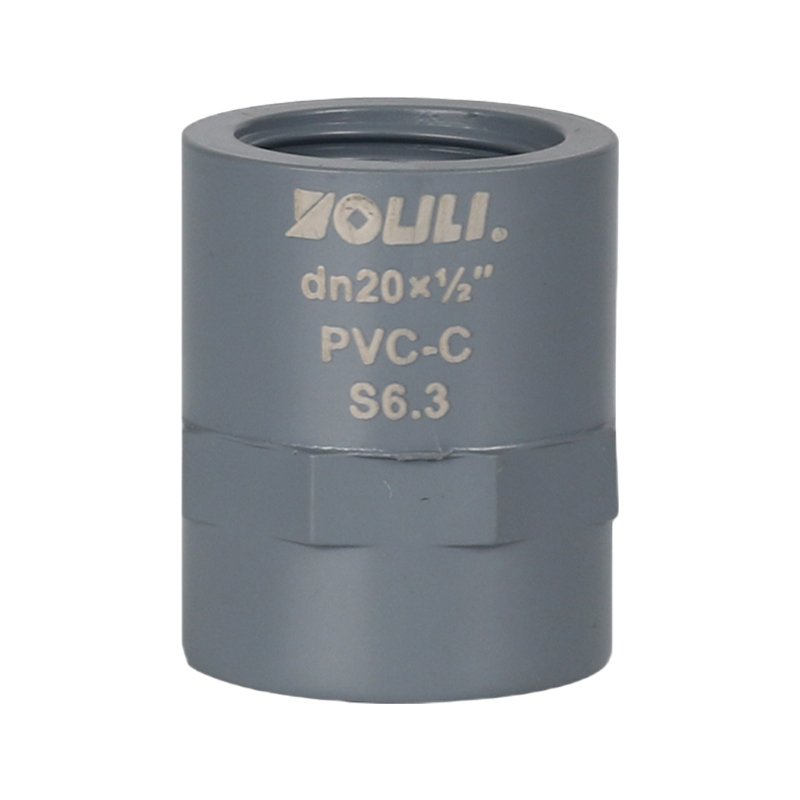

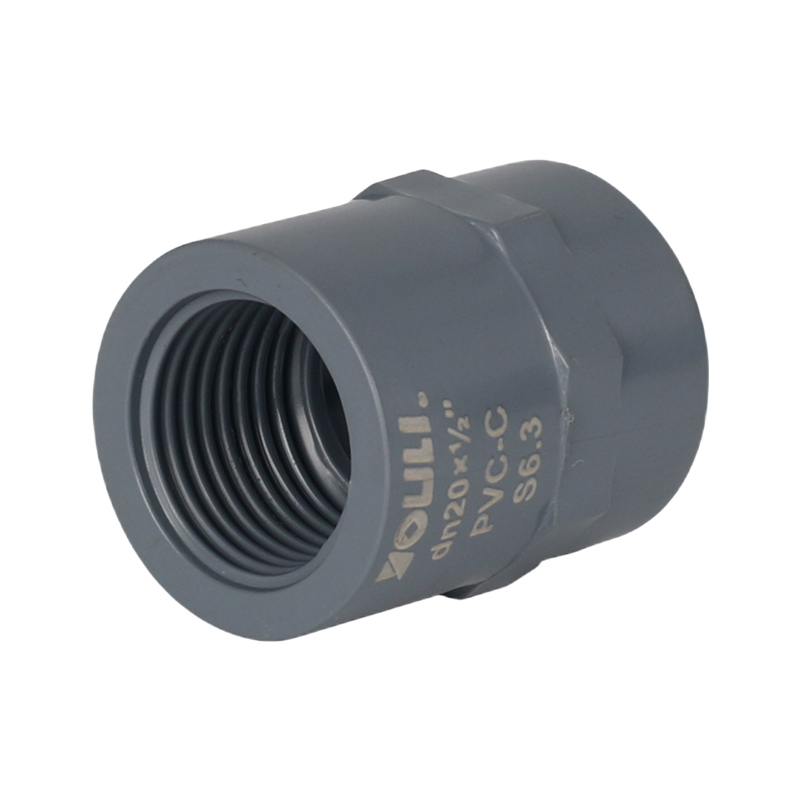

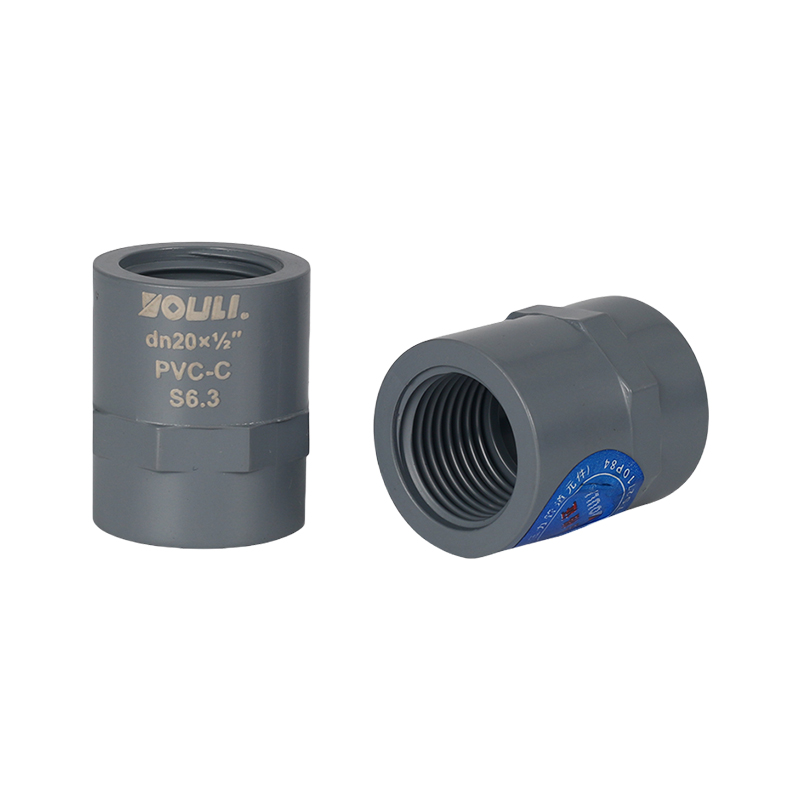

PVC-C Female Adaptor

YL 36 31 420

Consult

Features Technical Indicators Overall Dimension

1. It has good heat resistance and flame retardancy, can be used for a long time at a high temperature of 95°C, and is non-flammable.
2. It is corrosion-resistant and aging-resistant, and has strong tolerance to chemicals such as acids, alkalis, and salts.
3. It has good mechanical properties, can withstand greater external forces and pressures, and is not easy to deform or damage.

PVC-C Female Adaptor

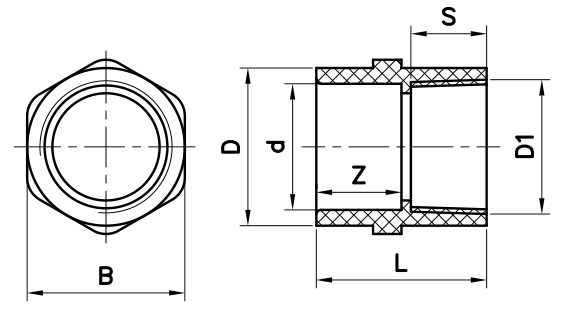

Size		Dimensions（mm）							Code
DN	dn	D	d	Z	D1	B	L	S	PVC-C	PVC-U
15	20	31	20	16	Rc ½＂	31	34	16	YL 36 31 420	YL 05 31 420
15	20	31	20	16	M20×1.5	31	34	16	YL 36 31 421	YL 05 31 421
20	25	33	25	19	Rc ¾＂	34	40	17	YL 36 31 425	YL 05 31 425
25	32	44	32	22	Rc 1＂	44	47	21	YL 36 31 432	YL 05 31 432
25	32	44	32	22	M20×1.5	44	47	21	YL 36 31 433	YL 05 31 433
32	40	50	40	27	Rc 1¼＂	50	54	24	YL 36 31 440	YL 05 31 440
40	50	64.5	50	31	Rc 1½＂	65	62	27	YL 36 31 450	YL 05 31 450
50	63	77.5	63	38	Rc 2＂	78	69	27	YL 36 31 463	YL 05 31 463
