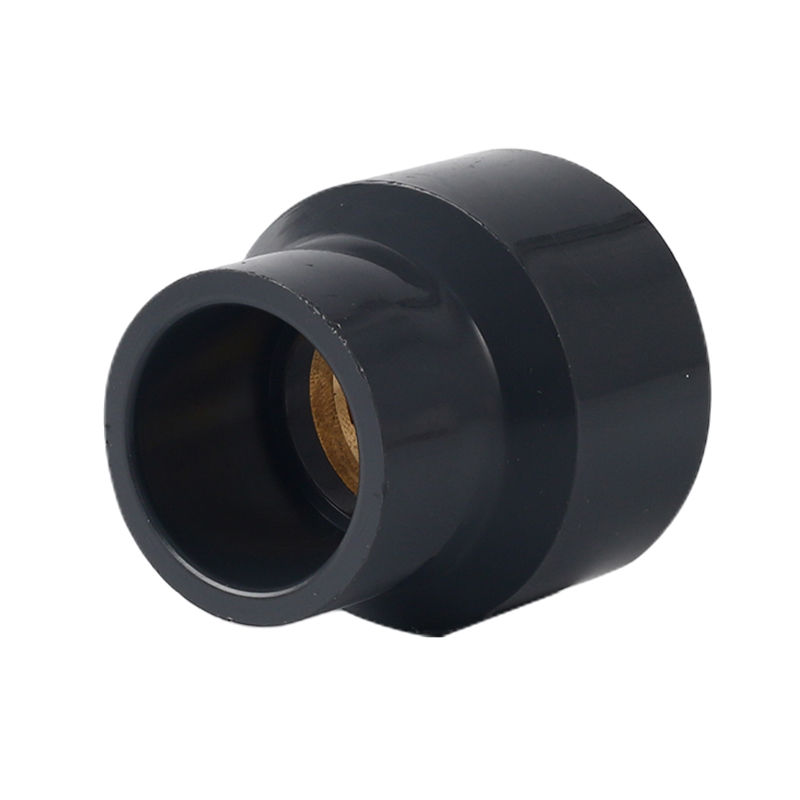

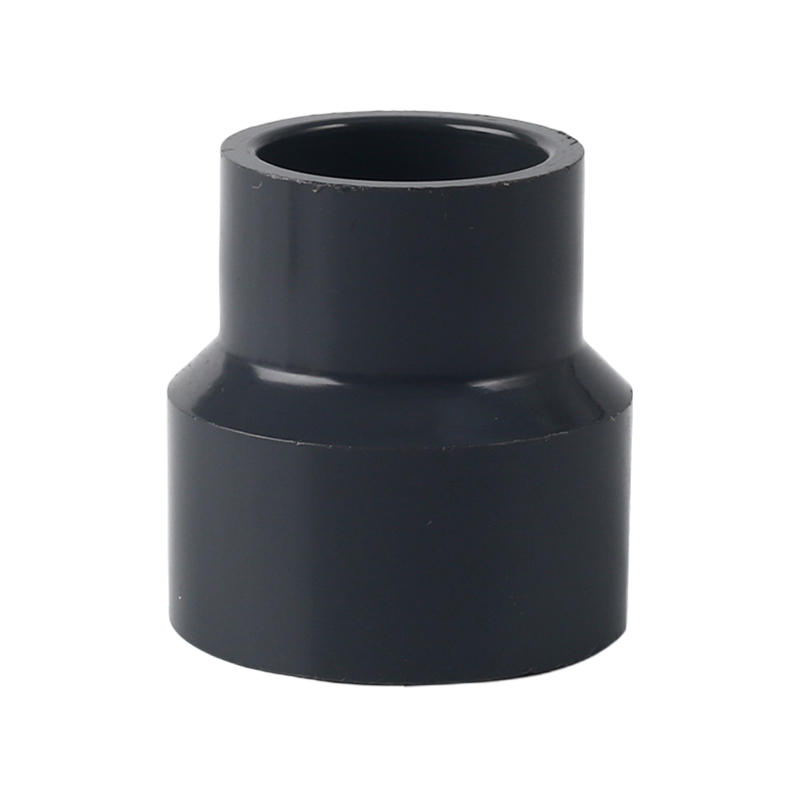

PVC-U Brass Female Adaptor

YL 05 31 520

Consult

Features Technical Indicators Overall Dimension

1. Wear-resistant, water-resistant, and anti-aging, the normal service life can reach more than 30 years.
2. The product meets national environmental protection requirements, does not contain plasticizers, is non-toxic and harmless, and can be recycled.
3. The product is widely used in water supply and drainage pipes, agricultural irrigation pipes, environmental engineering pipes, air conditioning pipes and other fields.

PVC-U Brass Female Adaptor
Size		Dimensions（mm）							Code
DN	dn	D1	d1	D2	d2	L	Z	S	PVC-C	PVC-U
15	20	28	20	34	Rc½＂	38	16	16	YL 36 31 520	YL 05 31 520
20	25	32	25	41	Rc¾＂	43	20	16.5	YL 36 31 525	YL 05 31 525
25	32	40	32	48	Rc1＂	49	22	19.5	YL 36 31 532	YL 05 31 532
20	25	34	25	34	Rc½＂	41	19	16	YL 36 31 524	YL 05 31 524
25	32	41	32	41	Rc¾＂	48	22	16.5	YL 36 31 531	YL 05 31 531
32	40	51	40	51	Rc1＂	55	27.5	19.5	YL 36 31 539	YL 05 31 53
