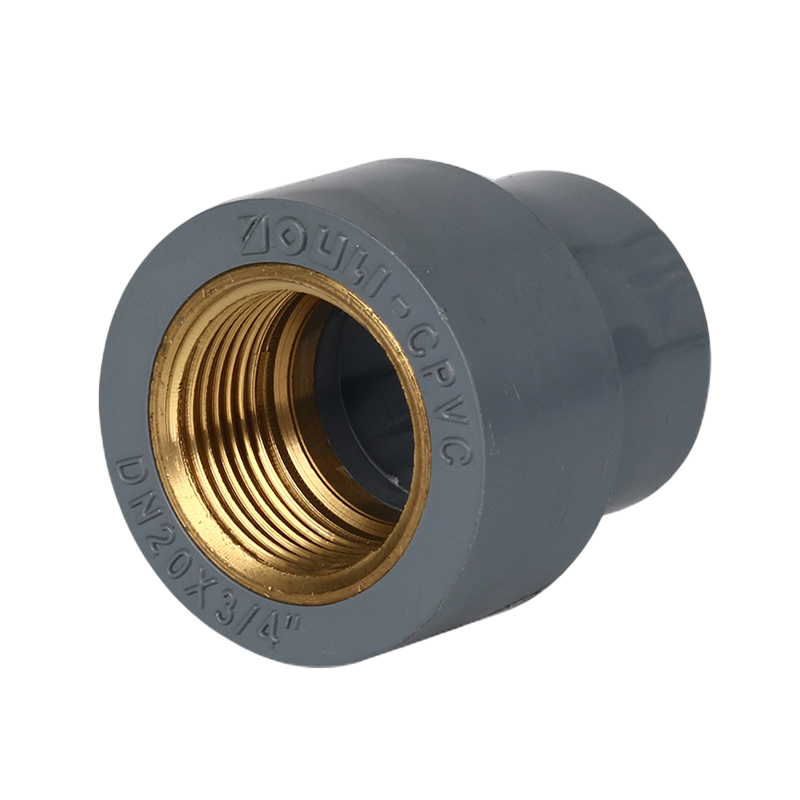

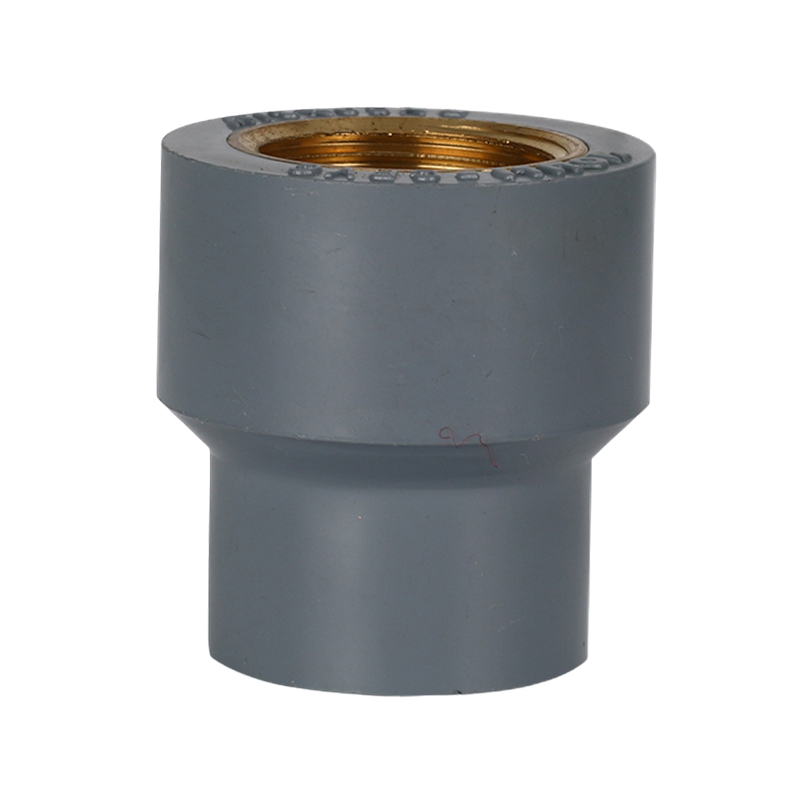

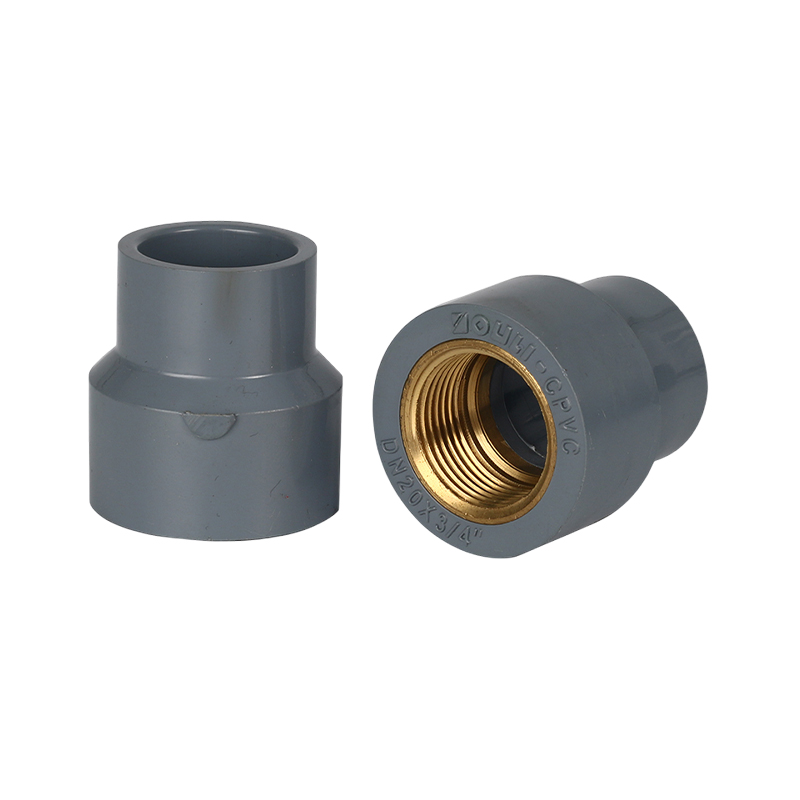

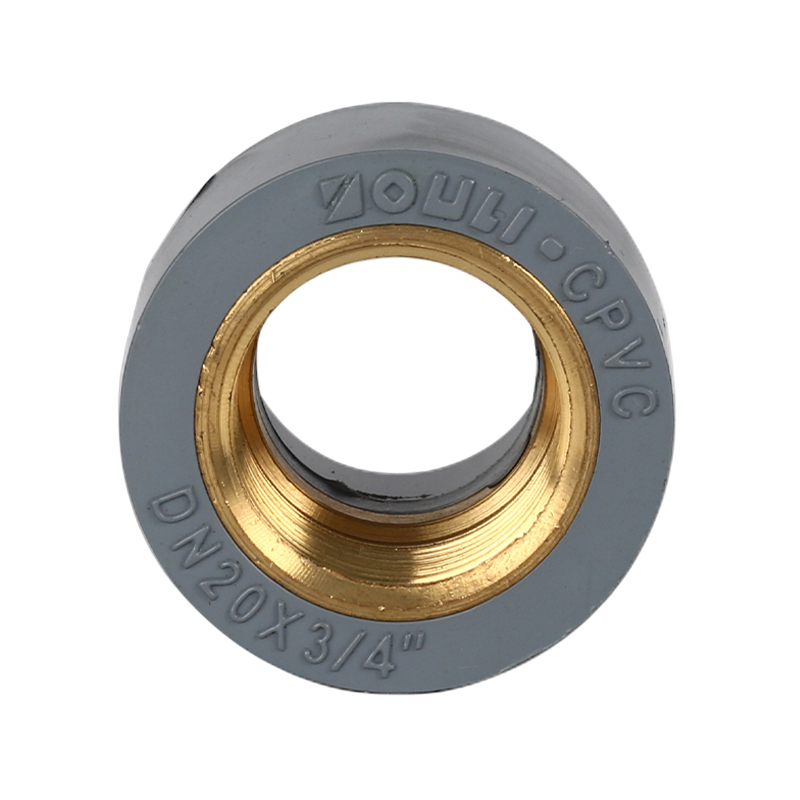

PVC-C Brass Female Adaptor

YL 36 31 520

Consult

Features Technical Indicators Overall Dimension

1. It has good heat resistance and flame retardancy, can be used for a long time at a high temperature of 95°C, and is non-flammable.
2. It is corrosion-resistant and aging-resistant, and has strong tolerance to chemicals such as acids, alkalis, and salts.
3. It has good mechanical properties, can withstand greater external forces and pressures, and is not easy to deform or damage.

PVC-C Brass Female Adaptor

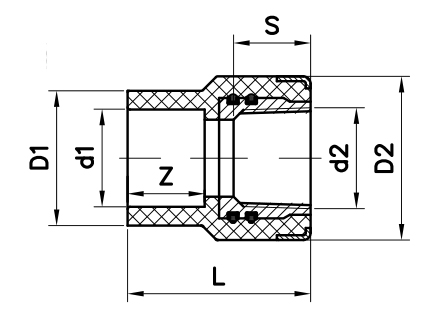

Size		Dimensions（mm）							Code
DN	dn	D1	d1	D2	d2	L	Z	S	PVC-C	PVC-U
15	20	28	20	34	Rc½＂	38	16	16	YL 36 31 520	YL 05 31 520
20	25	32	25	41	Rc¾＂	43	20	16.5	YL 36 31 525	YL 05 31 525
25	32	40	32	48	Rc1＂	49	22	19.5	YL 36 31 532	YL 05 31 532
20	25	34	25	34	Rc½＂	41	19	16	YL 36 31 524	YL 05 31 524
25	32	41	32	41	Rc¾＂	48	22	16.5	YL 36 31 531	YL 05 31 531
32	40	51	40	51	Rc1＂	55	27.5	19.5	YL 36 31 539	YL 05 31 53
