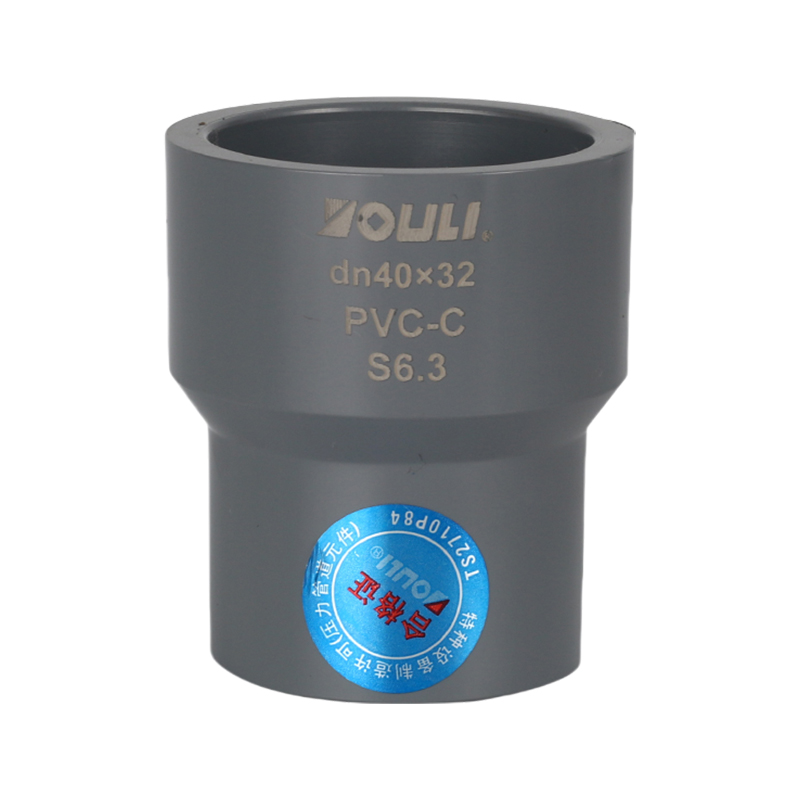

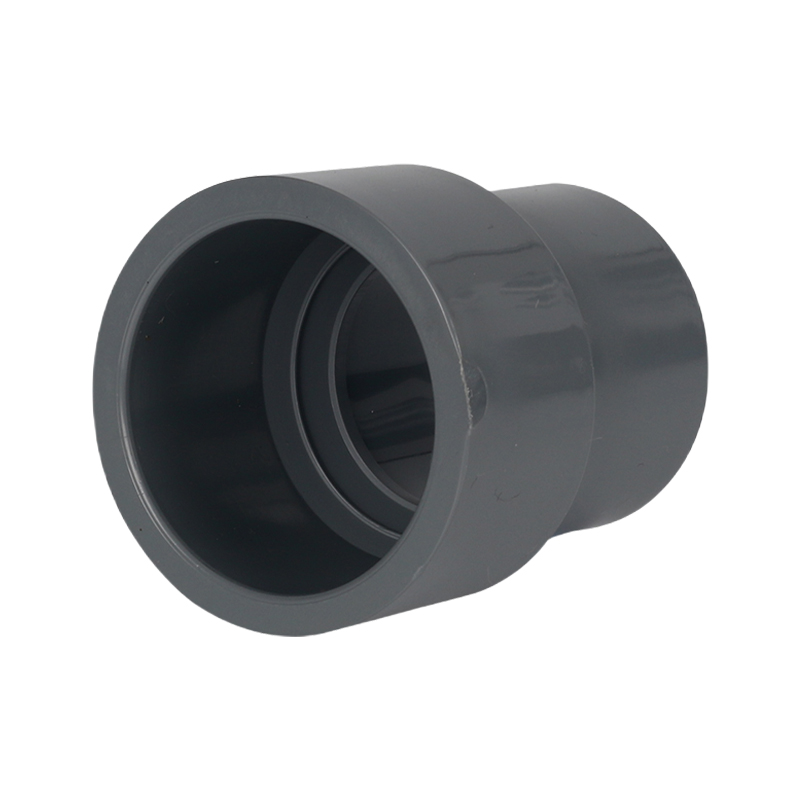

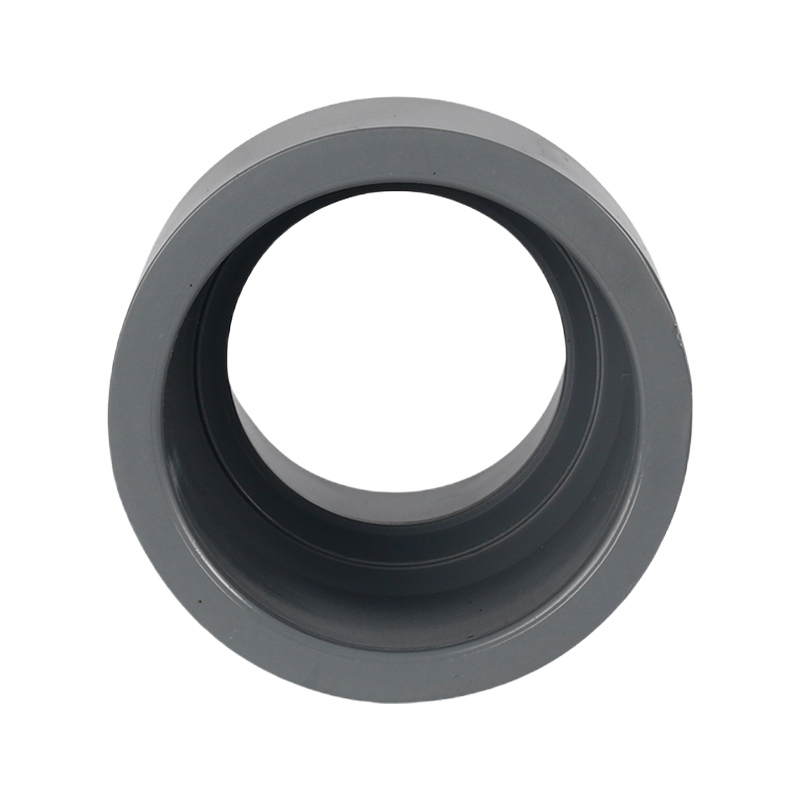

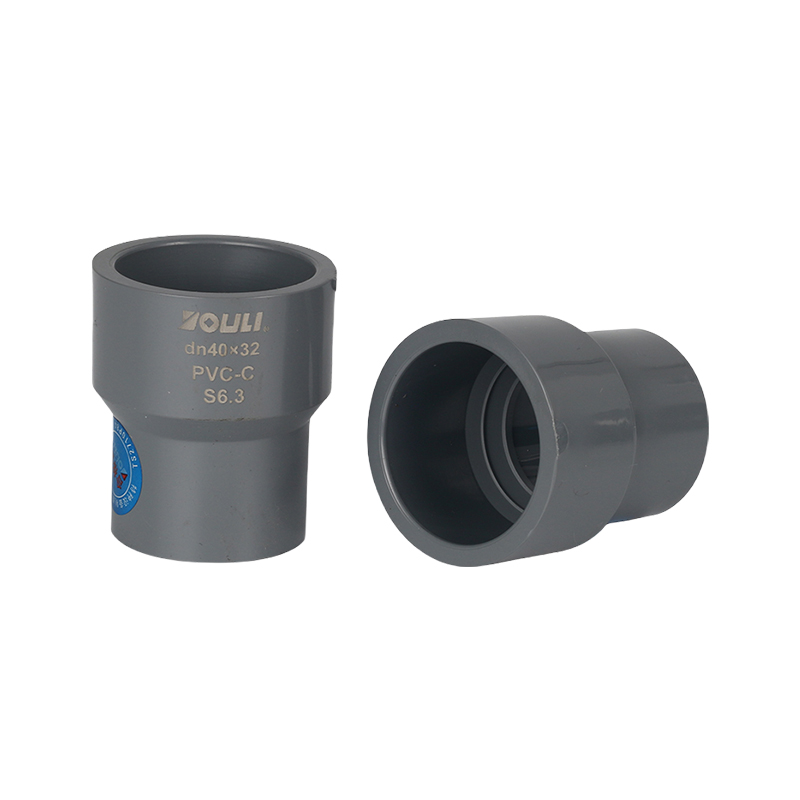

PVC-C Reducer

YL 36 09 025
1. It has good heat resistance and flame retardancy, can be used for a long time at a high temperature of 95℃, and is non-flammable.
2. It is corrosion-resistant and aging-resistant, and has strong tolerance to chemicals such as acids, alkalis, and salts.
3. It has good mechanical properties, can withstand greater external forces and pressures, and is not easy to deform or damage.

Consult

Features Technical Indicators Overall Dimension

PVC-C Reducer
Size		Dimensions（mm）							Code
DN	dn	D1	d1	D2	d2	L	Z2	Z1	PVC-C	PVC-U
20×15	25×20	32	25	27	20	42	16	19	YL 36 09 025	YL 05 09 025
25×15	32×20	40	32	32	20	49	17	22	YL 36 09 031	YL 05 09 031
25×20	32×25	40	32	32	25	49	19	22	YL 36 09 032	YL 05 09 032
32×25	40×32	49.5	40	40	32	57	22	26	YL 36 09 040	YL 05 09 040
40×32	50×40	61	50	50	40	70	26	31	YL 36 09 050	YL 05 09 050
50×15	63×20	75	63	27	20	80	16	38	YL 36 09 061	YL 05 09 061
50×25	63×32	75	63	40	32	82	22	38	YL 36 09 062	YL 05 09 062
50×40	63×50	75	63	61	50	82	31	38	YL 36 09 063	YL 05 09 063
65×50	75×63	88	75	75	63	97	38	45	YL 36 09 075	YL 05 09 075
80×40	90×50	104	90	61	50	111	31	51	YL 36 09 088	YL 05 09 088
80×50	90×63	104	90	75	63	115	38	51	YL 36 09 089	YL 05 09 089
80×65	90×75	104	90	88	75	111	44	51	YL 36 09 090	YL 05 09 090
100×50	110×63	127	110	75	63	136	38	61	YL 36 09 109	YL 05 09 109
100×80	110×90	127	110	105	90	132	51	62	YL 36 09 110	YL 05 09 110
125×100	140×110	161	140	127	110	164	61	76	YL 36 09 140	YL 05 09 140
150×100	160×110	180	160	127	110	190	61	86	YL 36 09 159	YL 05 09 159
150×125	160×140	184	160	161	140	191	76	86	YL 36 09 160	YL 05 09 160
200×150	225×160	249	225	184	160	227	86	95	YL 36 09 225	YL 05 09 225
250×200	280×225	308	280	248	225	323	119	145	YL 36 09 280	YL 05 09 280
300×250	315×280	350	315	309	280	362	146	164	YL 36 09 315	YL 05 09 315
350×300	355×315	386	355	346	315	380	164	182	YL 36 09 355	YL 05 09 355
400×300	400×315	432	400	346	315	424	164	206	YL 36 09 400	YL 05 09 400
400×350	400×355	432	400	390	355	406	185	206	YL 36 09 401	YL 05 09 401
*450×250	450×280	490	450	310	280	378	146	260	Z 36 09 006	Z 05 09 006
*450×300	450×315	490	450	340	315	410	164	260	Z 36 09 144	Z 05 09 144
*450×350	450×355	490	450	390	355	431	185	260	Z 36 09 018	Z 05 09 018
*500×300	500×315	539	500	340	315	440	164	290	Z 36 09 082	Z 05 09 082
*600×350	630×355	676	630	390	355	582	185	330	Z 36 09 027	Z 05 09 027
*600×400	630×400	676	630	432	400	618	206	330	Z 36 09 026	Z 05 09 026
*700×600	710×630	754	710	676	630	880	330	420	Z 36 09 030	Z 05 09 030
*800×500	800×500	849	800	539	500	788	290	440	Z 36 09 031	Z 05 09 031
*800×600	800×630	849	800	676	630	920	330	440	Z 36 09 032	Z 05 09 032
*1000×800	1000×800	1048	1000	849	800	1130	440	480	Z 36 09 033	Z 05 09 033
