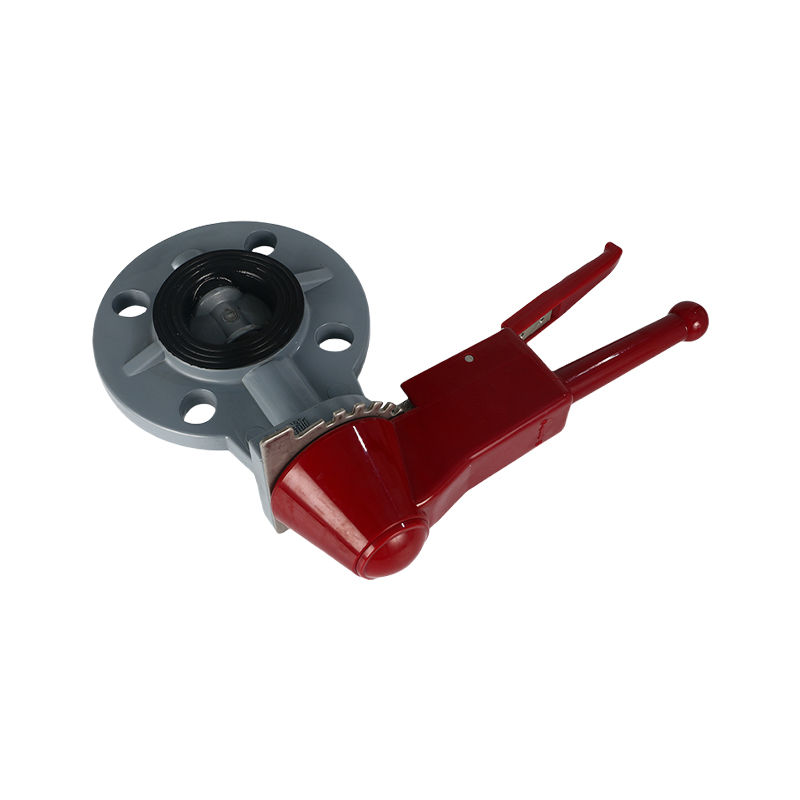

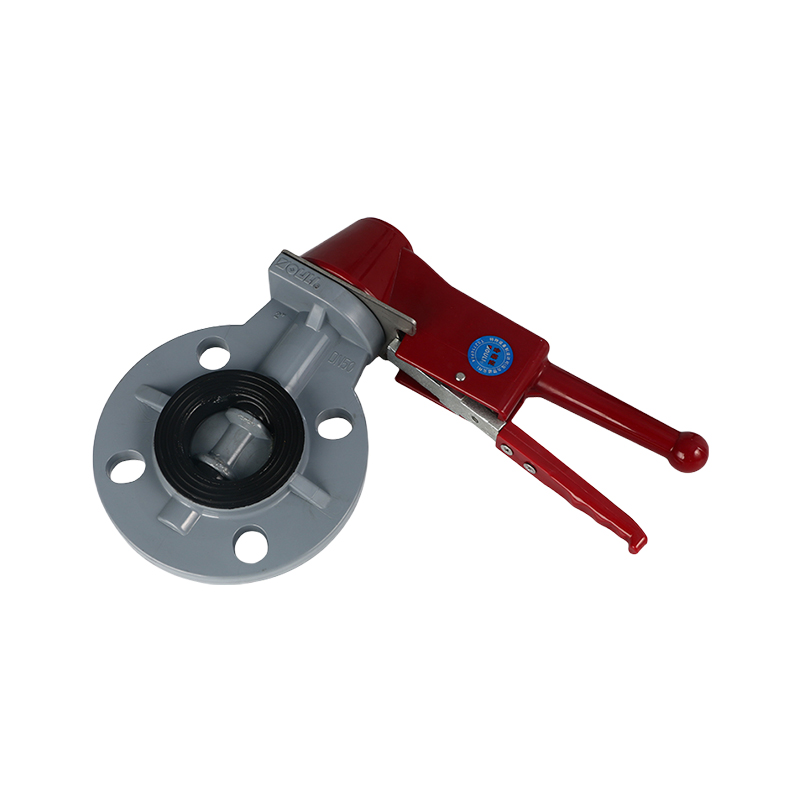

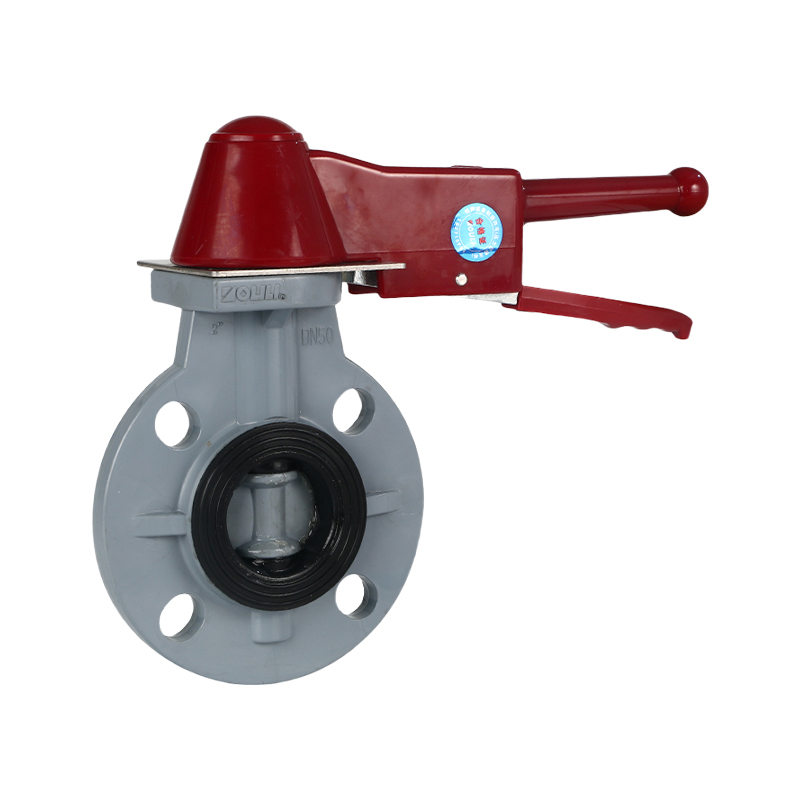

PVC-C Handled Butterfly Valve

YL 36 84 063
1. It has good heat resistance and flame retardancy, can be used for a long time at a high temperature of 95℃, and is non-flammable.
2. It is corrosion-resistant and aging-resistant, and has strong tolerance to chemicals such as acids, alkalis, and salts.
3. It has good mechanical properties, can withstand greater external forces and pressures, and is not easy to deform or damage.

Consult

Features Technical Indicators Overall Dimension

PVC-C Handled Butterfly Valve
Size		Dimensions（mm）							Code
Size		Dimensions（mm）							PVC-C		PVC-U
dn	DN	D	de	d1	N	H	L	n-Φe	EPDM	FPM	EPDM	FPM
50	63	162	50	125	240	181	40	April 18	YL 36 84 063E	YL 36 84 063F	YL 05 84 063E	YL 05 84 063F
65	75	182	65	145	240	189	46	April 18	YL 36 84 075E	YL 36 84 075F	YL 05 84 075E	YL 05 84 075F
80	90	196	78	160	240	198	46	August 18	YL 36 84 090E	YL 36 84 090F	YL 05 84 090E	YL 05 84 090F
100	110	228	98	180	240	216	56	August 18	YL 36 84 110E	YL 36 84 110F	YL 05 84 110E	YL 05 84 110F
125	140	256	125	210	315	256	66	August 18	YL 36 84 140E	YL 36 84 140F	YL 05 84 140E	YL 05 84 140F
150	160	288	148	240	315	268	75	August 22	YL 36 84 160E	YL 36 84 160F	YL 05 84 160E	YL 05 84 160F
