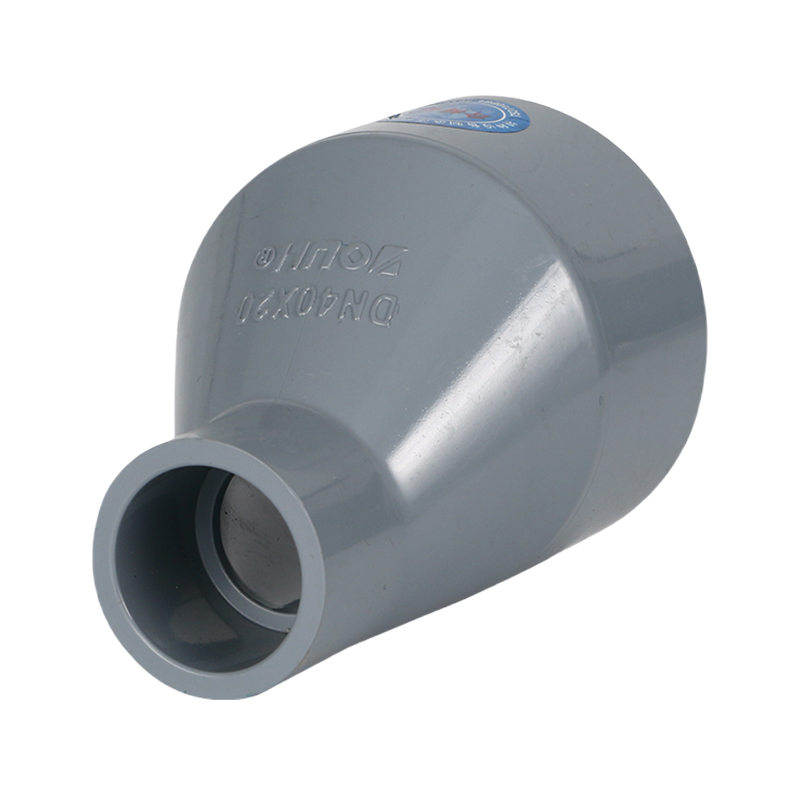

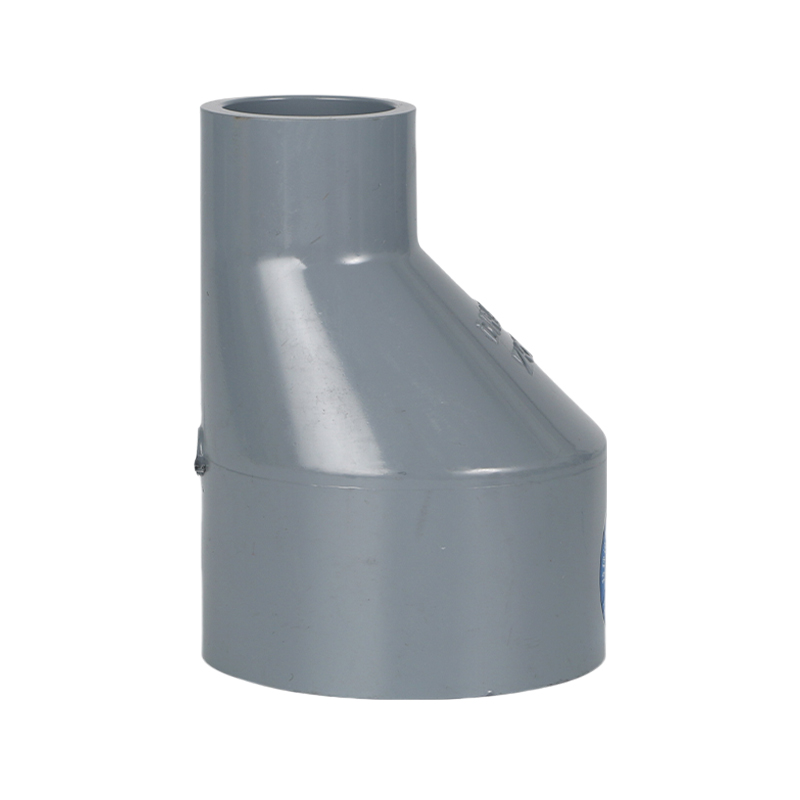

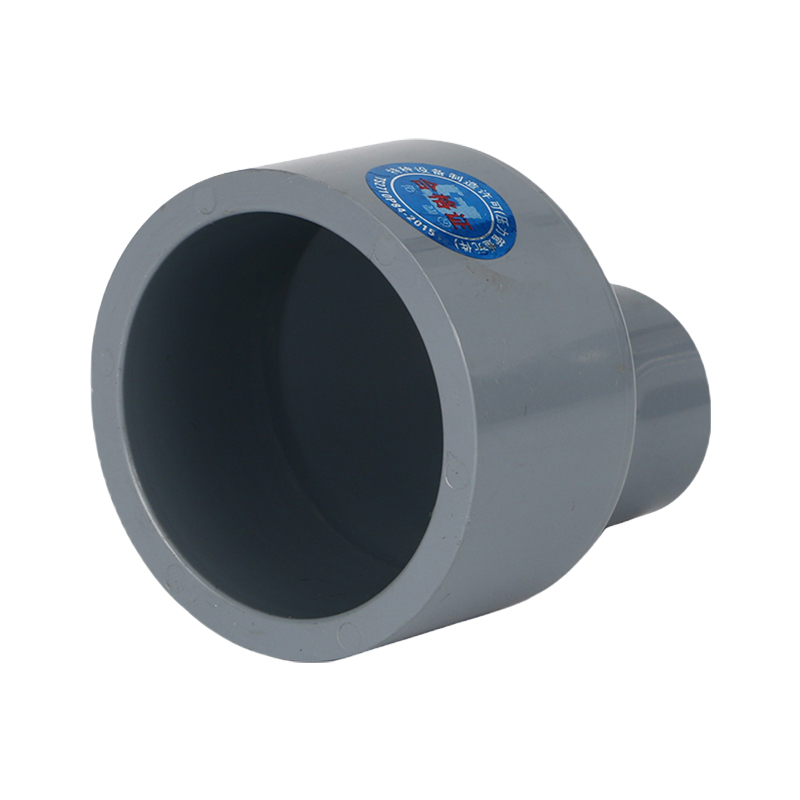

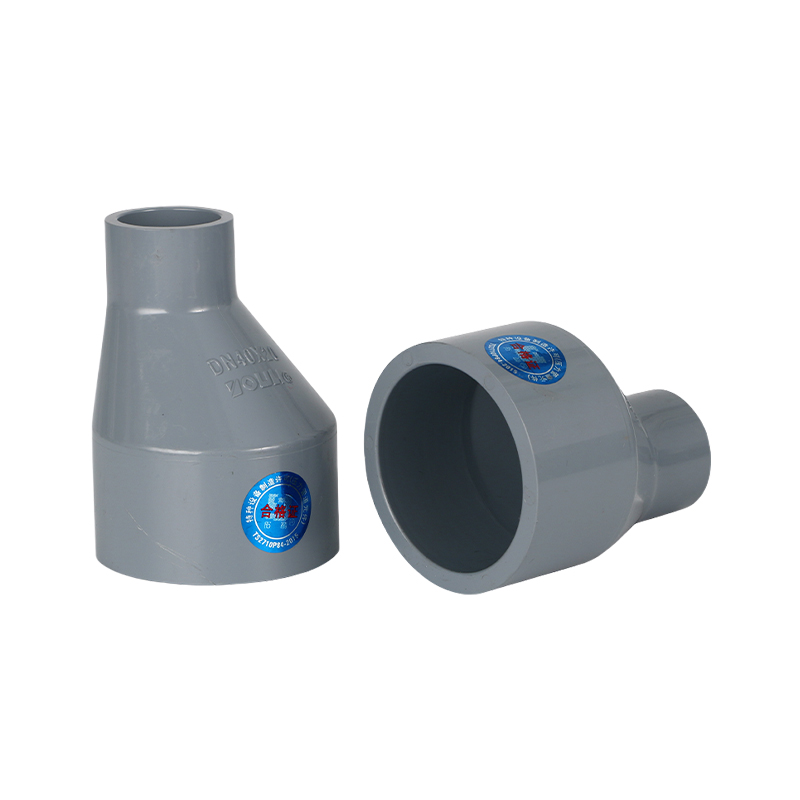

PVC-C Eccentric Reducer

YL 36 09 632
1. It has good heat resistance and flame retardancy, can be used for a long time at a high temperature of 95°C, and is non-flammable.
2. It is corrosion-resistant and aging-resistant, and has strong tolerance to chemicals such as acids, alkalis, and salts.
3. It has good mechanical properties, can withstand greater external forces and pressures, and is not easy to deform or damage.

Consult

Features Technical Indicators Overall Dimension

PVC-C Eccentric Reducer

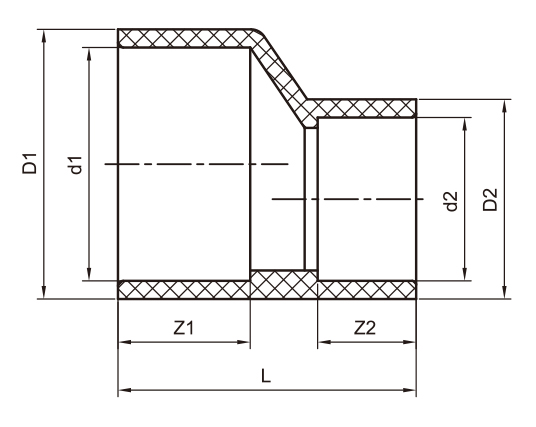

Size		Dimensions（mm）							Code
DN	dn	D1	d1	Z1	L	D2	d2	Z2	PVC-C	PVC-U
25×15	32×20	40	32	22	53.5	26	20	16	YL 36 09 632	YL 05 09 632
32×20	40×25	50	40	27	68	32	25	20	YL 36 09 640	YL 05 09 640
40×15	50×20	61	50	31	81.5	28	20	16	YL 36 09 648	YL 05 09 648
40×20	50×25	61	50	31	82.5	32	25	20	YL 36 09 649	YL 05 09 649
40×25	50×32	61	50	31	75.5	40	32	22	YL 36 09 650	YL 05 09 650
50×25	63×32	75	63	38	85	44	32	22	YL 36 09 663	YL 05 09 663
50×32	63×40	75	63	38	93	50	40	27	YL 36 09 664	YL 05 09 664
50×40	63×50	74	63	38	87	61	50	31	YL 36 09 665	YL 05 09 665
65×25	75×32	88	75	44	114.5	42	32	22	YL 36 09 673	YL 05 09 673
65×40	75×50	88	75	44	104.5	61	50	31	YL 36 09 674	YL 05 09 674
65×50	75×63	88	75	44	100	74	63	38	YL 36 09 675	YL 05 09 675
80×32	90×40	104	90	51	134.5	50	40	27	YL 36 09 690	YL 05 09 690
80×40	90×50	104	90	51	127.5	61	50	31	YL 36 09 691	YL 05 09 691
80×50	90×63	104	90	51	115	77	63	38	YL 36 09 692	YL 05 09 692
80×65	90×75	104	90	51	116.5	88	75	44	YL 36 09 693	YL 05 09 693
100×32	110×40	127	110	61	165.5	52	40	27	YL 36 09 709	YL 05 09 709
100×40	110×50	127	110	61	160.5	61	50	31	YL 36 09 710	YL 05 09 710
100×50	110×63	127	110	61	155	74	63	38	YL 36 09 711	YL 05 09 711
100×65	110×75	127	110	59	148	88	75	44	YL 36 09 712	YL 05 09 712
100×80	110×90	127	110	61	140	104	90	51	YL 36 09 713	YL 05 09 713
125×50	140×63	161	140	76	200.5	77	63	38	YL 36 09 737	YL 05 09 737
125×65	140×75	161	140	76	196	88	75	44	YL 36 09 738	YL 05 09 738
125×80	140×90	161	140	76	186	104	90	51	YL 36 09 739	YL 05 09 739
125×100	140×110	161	140	76	173.5	127	110	61	YL 36 09 740	YL 05 09 740
150×65	160×75	184	160	86	226.5	89	75	44	YL 36 09 758	YL 05 09 758
150×80	160×90	184	160	86	219.5	104	90	51	YL 36 09 759	YL 05 09 759
150×100	160×110	184	160	86	208.5	127	110	61	YL 36 09 760	YL 05 09 760
200×80	225×90	249	225	119	274	104	90	51	YL 36 09 828	YL 05 09 828
200×100	225×110	249	225	119	268	127	110	61	YL 36 09 825	YL 05 09 825
